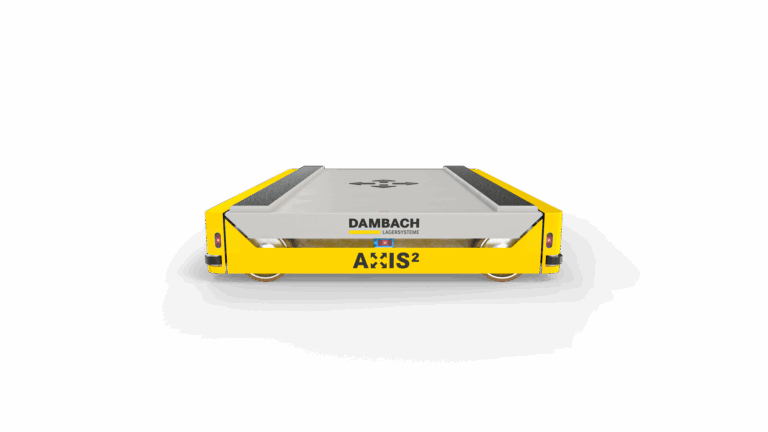

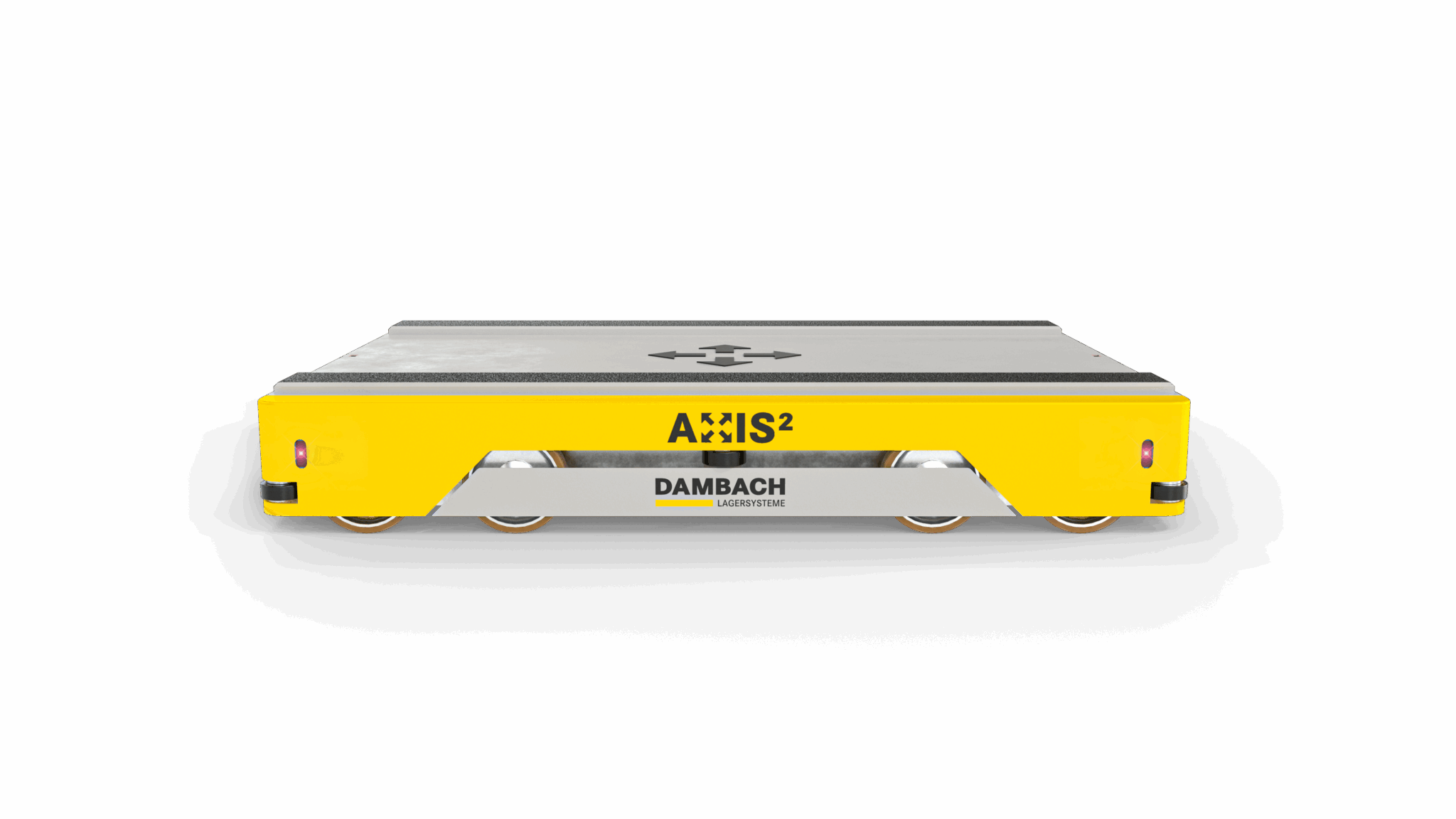

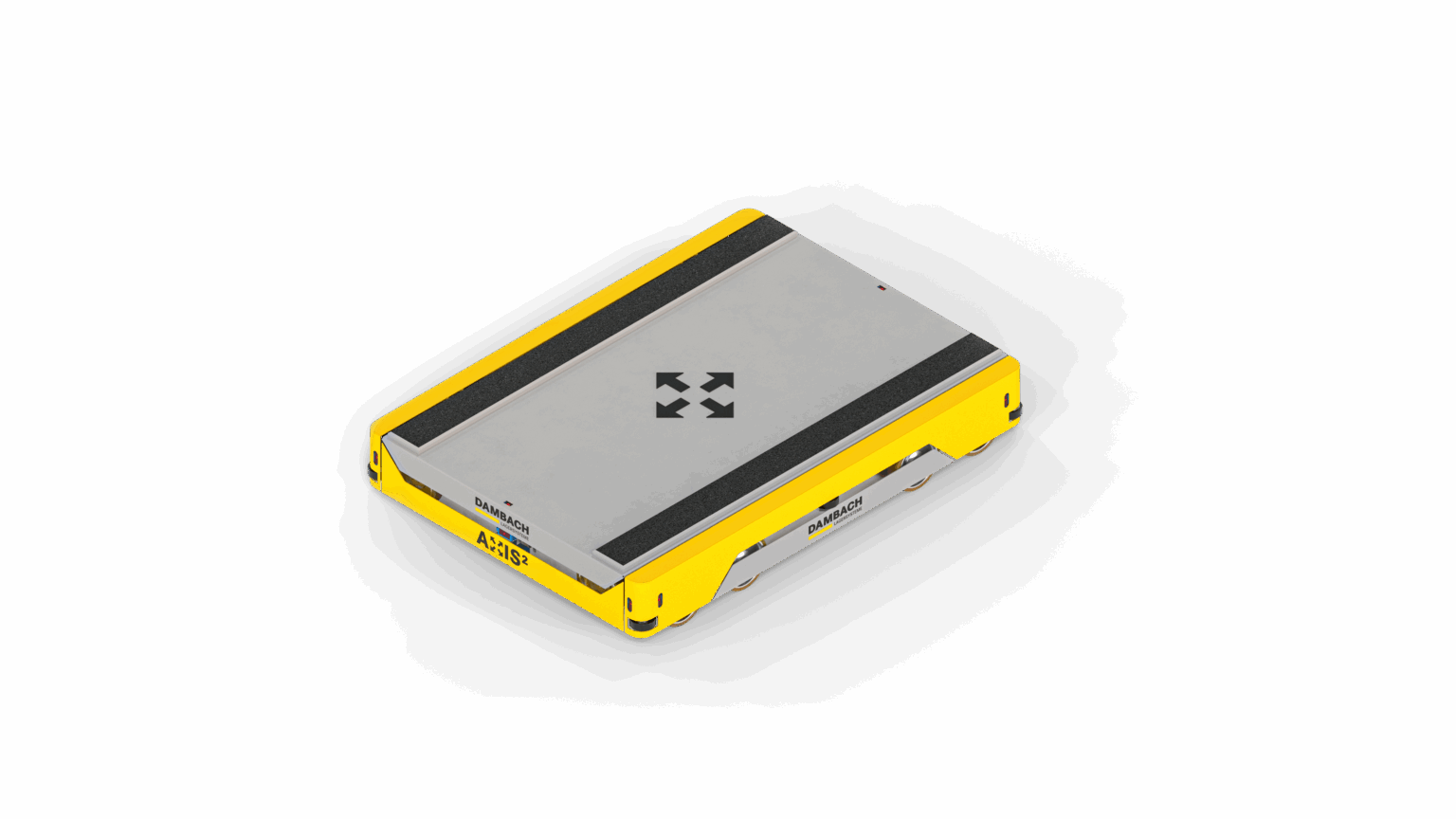

Product Overview

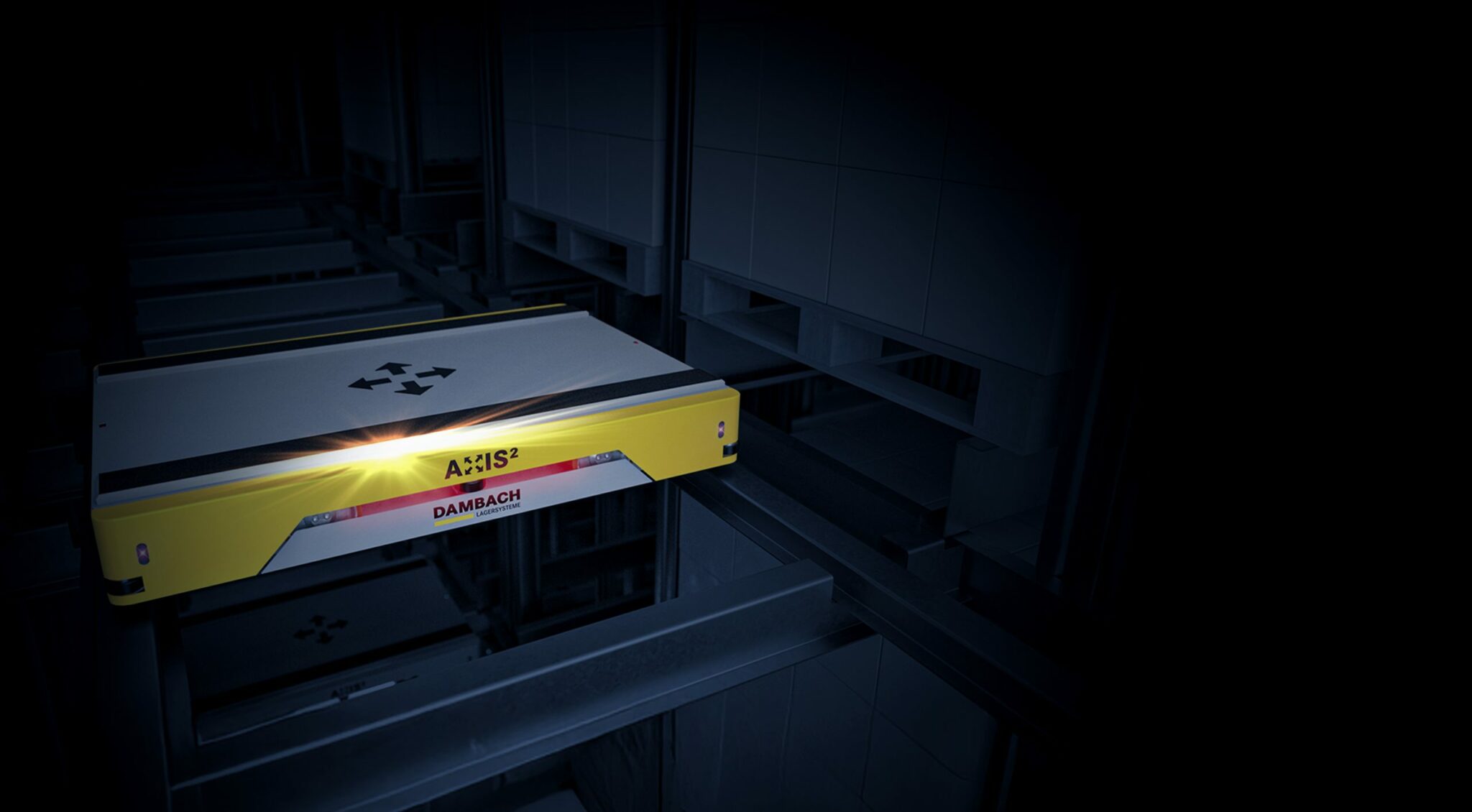

Sensor Array

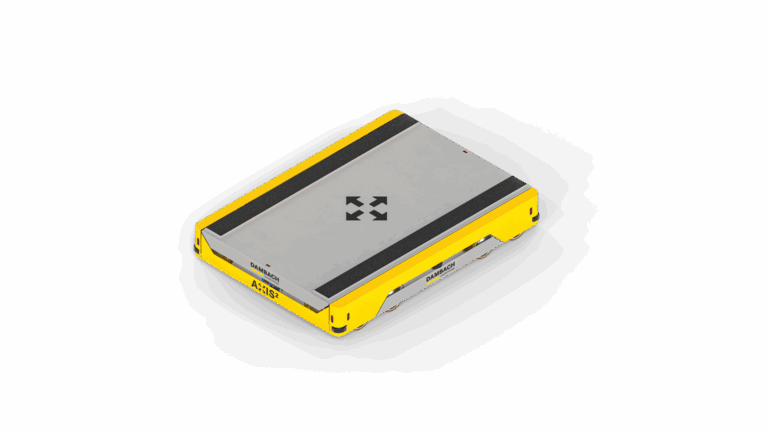

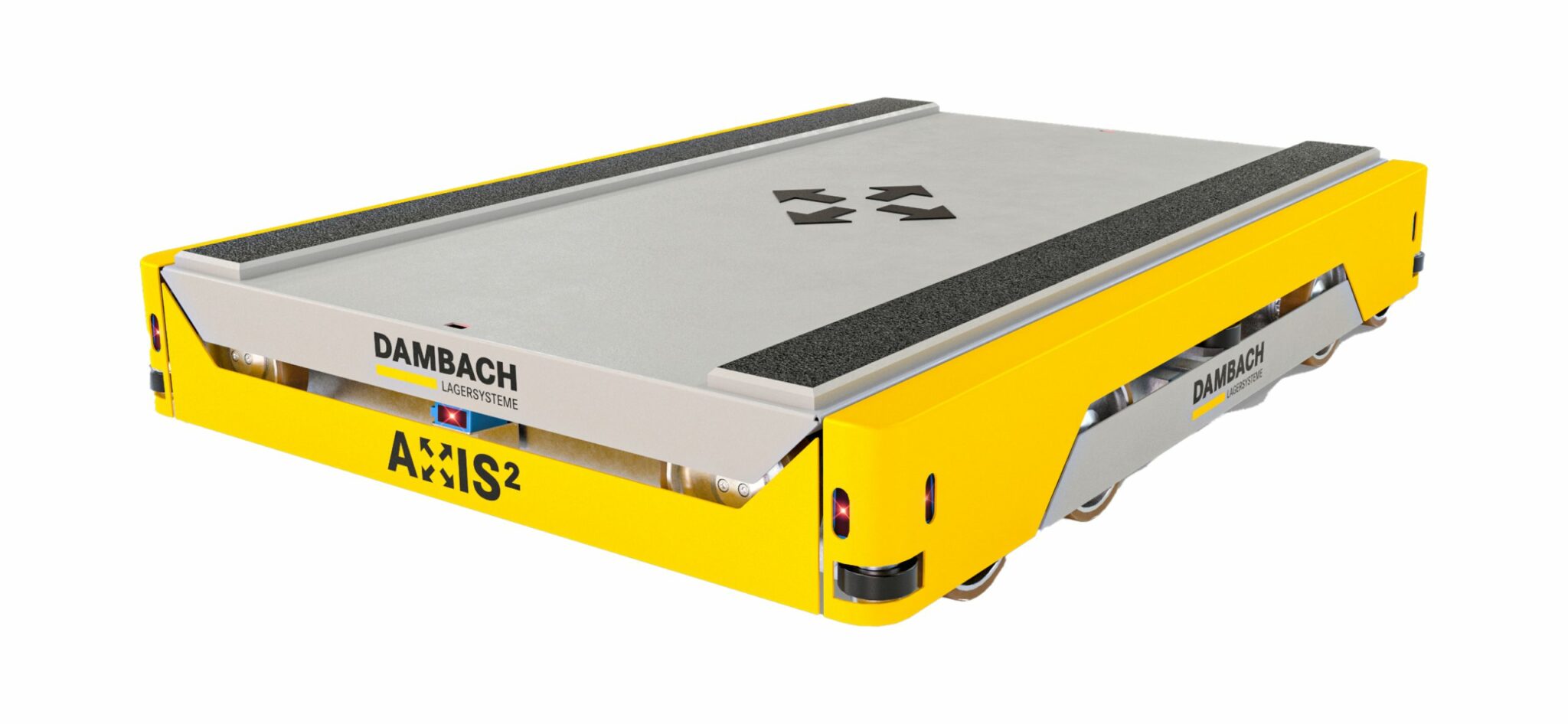

The Sensor Array enables precise positioning of the Axis2 Shuttle within the racking system and accurately detects pallet load locations. For enhanced durability, all sensors are fully enclosed within the shuttle’s body, ensuring reliable performance in demanding environments.
Deck Lid

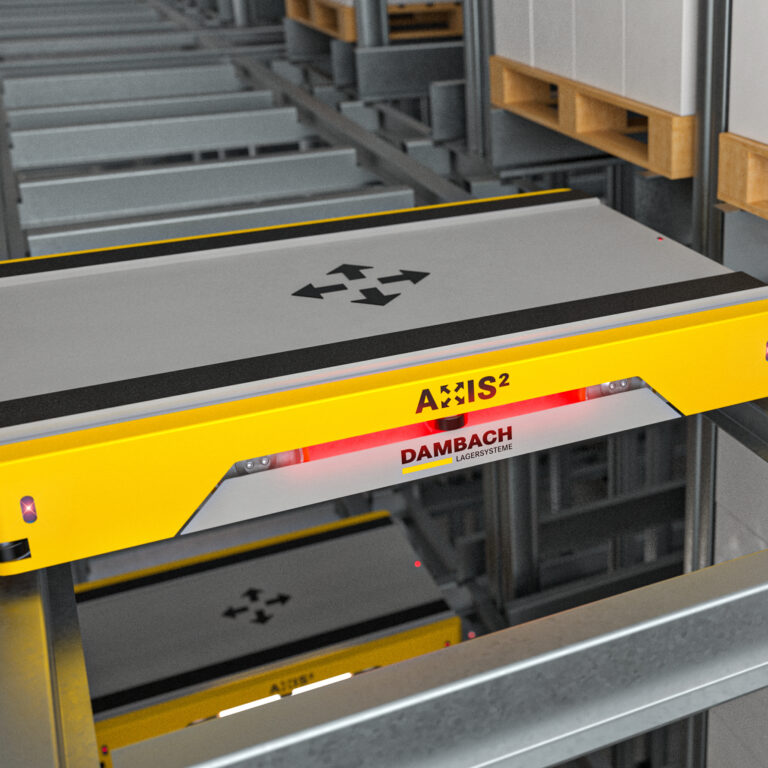

The Deck Lid enables efficient handling of heavy payloads, supporting up to 3,300 lbs per shuttle. With a lifting time of approximately 4 seconds, it ensures fast and reliable operation, contributing to streamlined throughput in high-demand environments.
Battery System

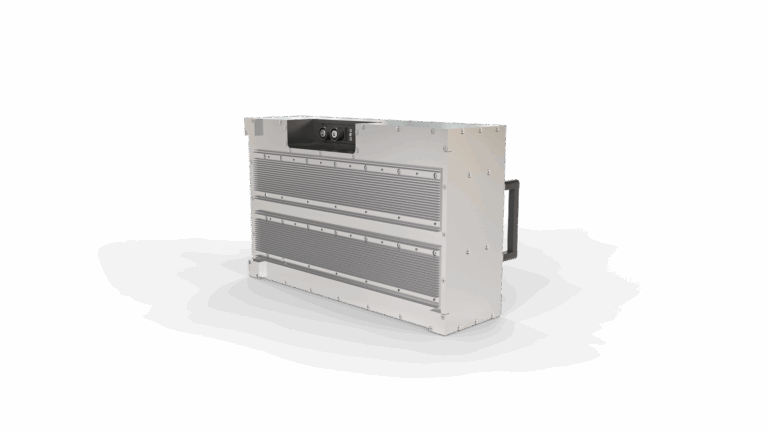

Axis is powered by a state-of-the-art Lithium Titanate (LTO) battery, delivering high performance with a 2-hour runtime. Designed for efficiency, the battery recharges in just 5–8 minutes at an integrated station within the rack system, minimizing downtime and maximizing productivity.
Wheels & Traction System

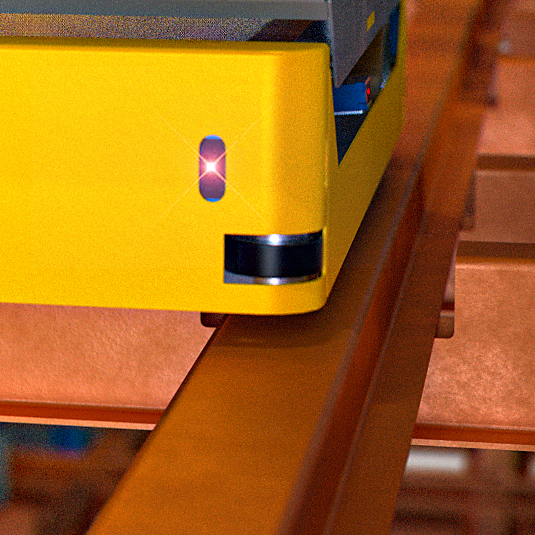

Equipped with twelve driven wheels, Axis ensures stable, reliable movement in all directions. This design provides consistent traction, even during transitions from aisle to channel or onto a lift. With a maximum traveling speed of 295 ft/min, it maintains both agility and control in dynamic environments, including cold storage.
Precision and Efficiency in Motion

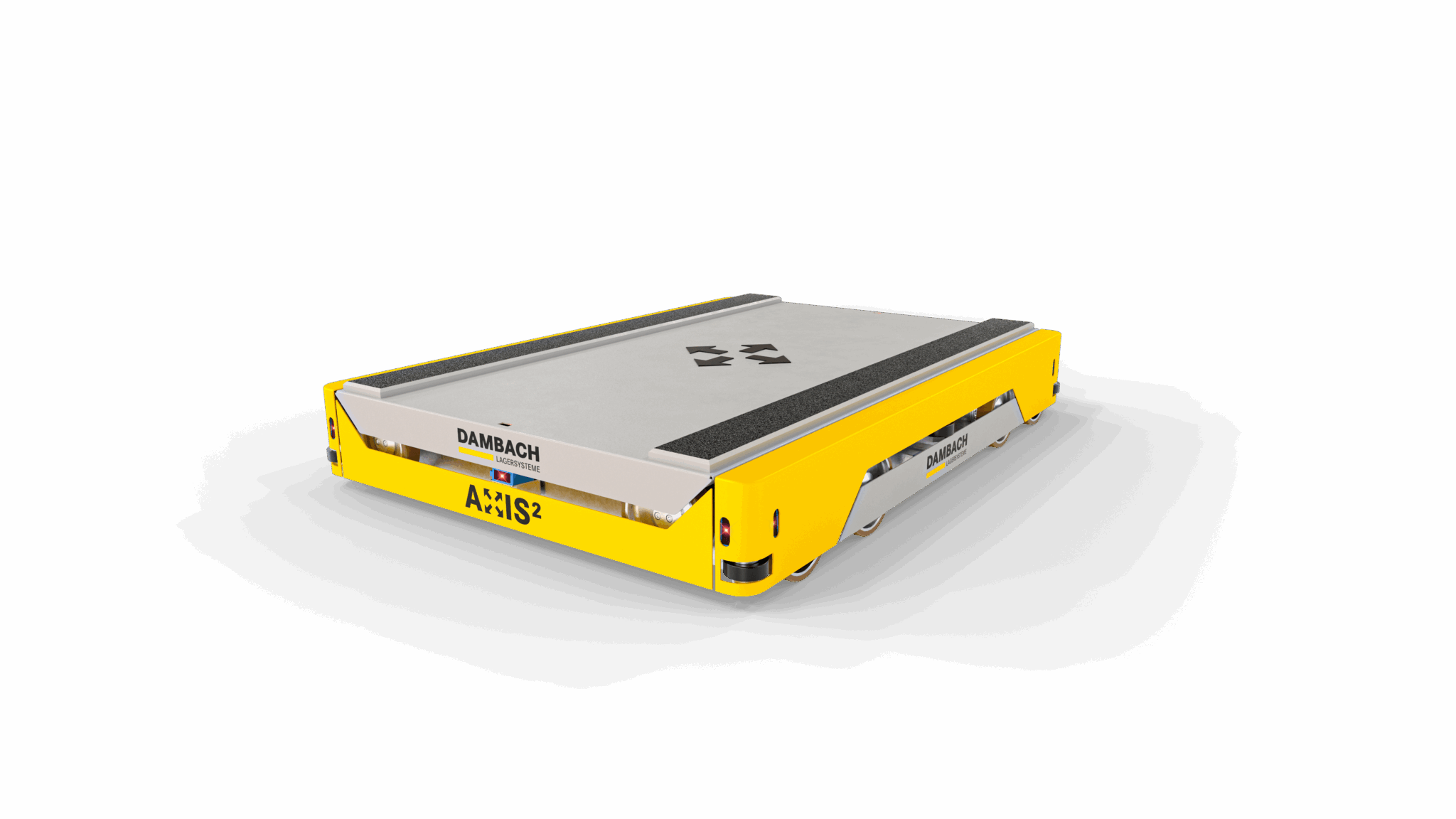

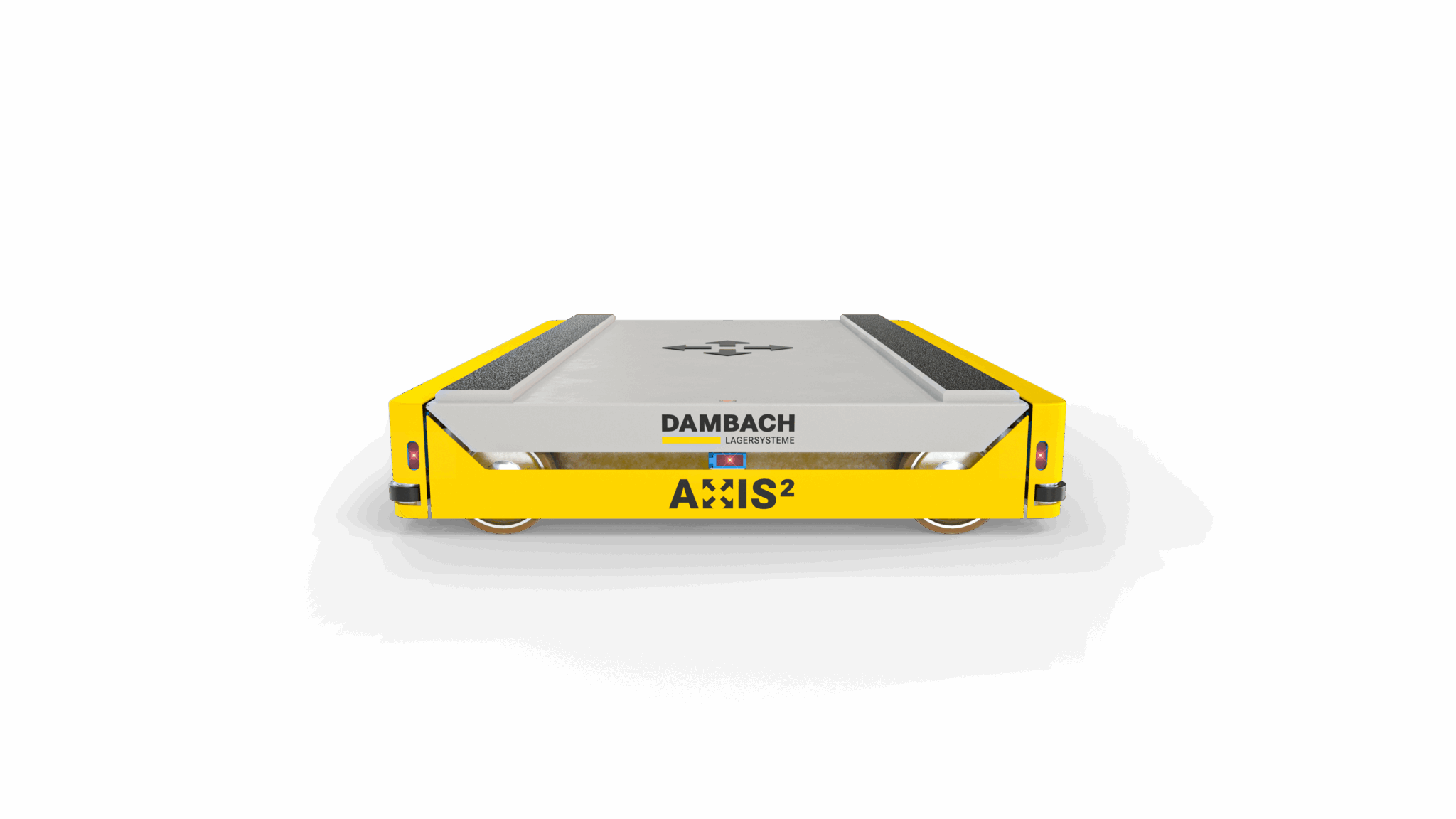

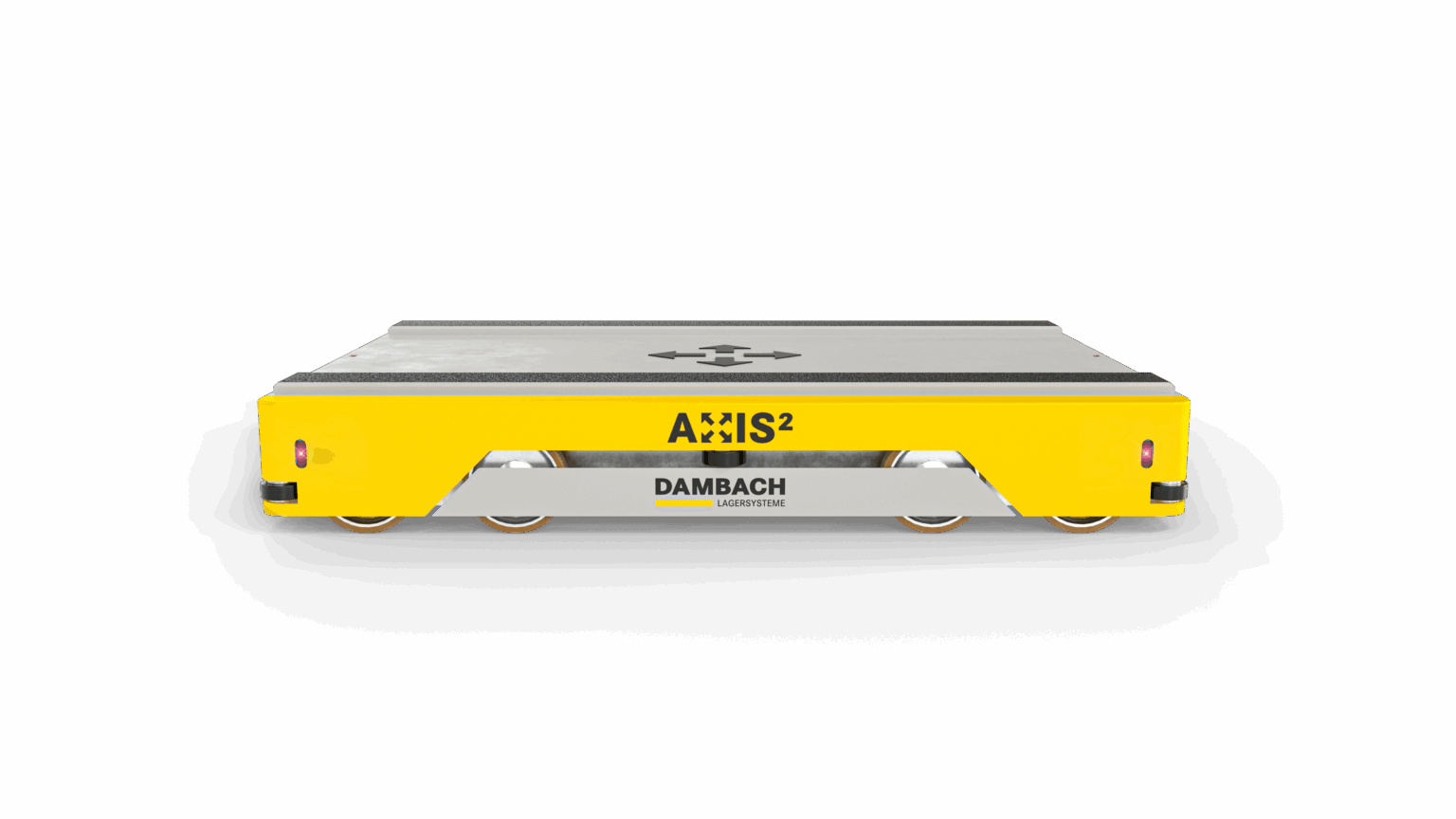

The AXIS² system is a fully automated multi-deep storage system for tomorrow’s cutting edge warehouse demands. Developed in close partnership with DAMBACH, AXIS² combines cutting-edge technology with user-centric innovation to set supply chain storage standards for the flexibility, high speed utilization and the efficient handling of diverse pallet types.
Key Features
Seamless Expansion
AXIS² seamlessly expands to accommodate higher volume or additional SKUs as business needs evolve.
Seamless Functionality
Proven software reliability across complex systems underscores our commitment to deliver a high performing solution with seamless functionality.
Shuttle Transfers in Seconds
The AXIS² shuttle and rack structure work seamlessly together, with specially engineered aisle-channel crossings allowing shuttle transfers to occur in just seconds.
Optimizing Space Utilization
The AXIS² design incorporates shuttle and unit load lifts with minimized upper and lower approach dimensions, maximizing storage capacity and optimizing space utilization.
Innovative Features
Precision and Efficiency in Motion
The AXIS² shuttle and rack structure work seamlessly together, with specially engineered aisle-channel crossings allowing shuttle transfers to occur in just seconds.
Precision and Efficiency in Motion
The AXIS² design incorporates shuttle and unit load lifts with minimized upper and lower approach dimensions, maximizing storage capacity and optimizing space utilization.
Precision and Efficiency in Motion

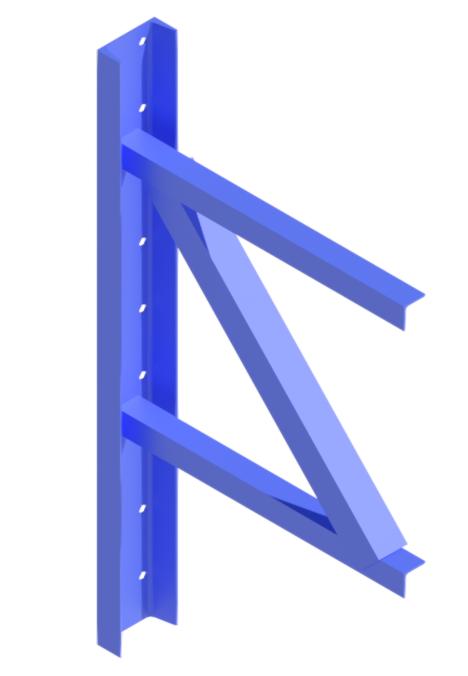

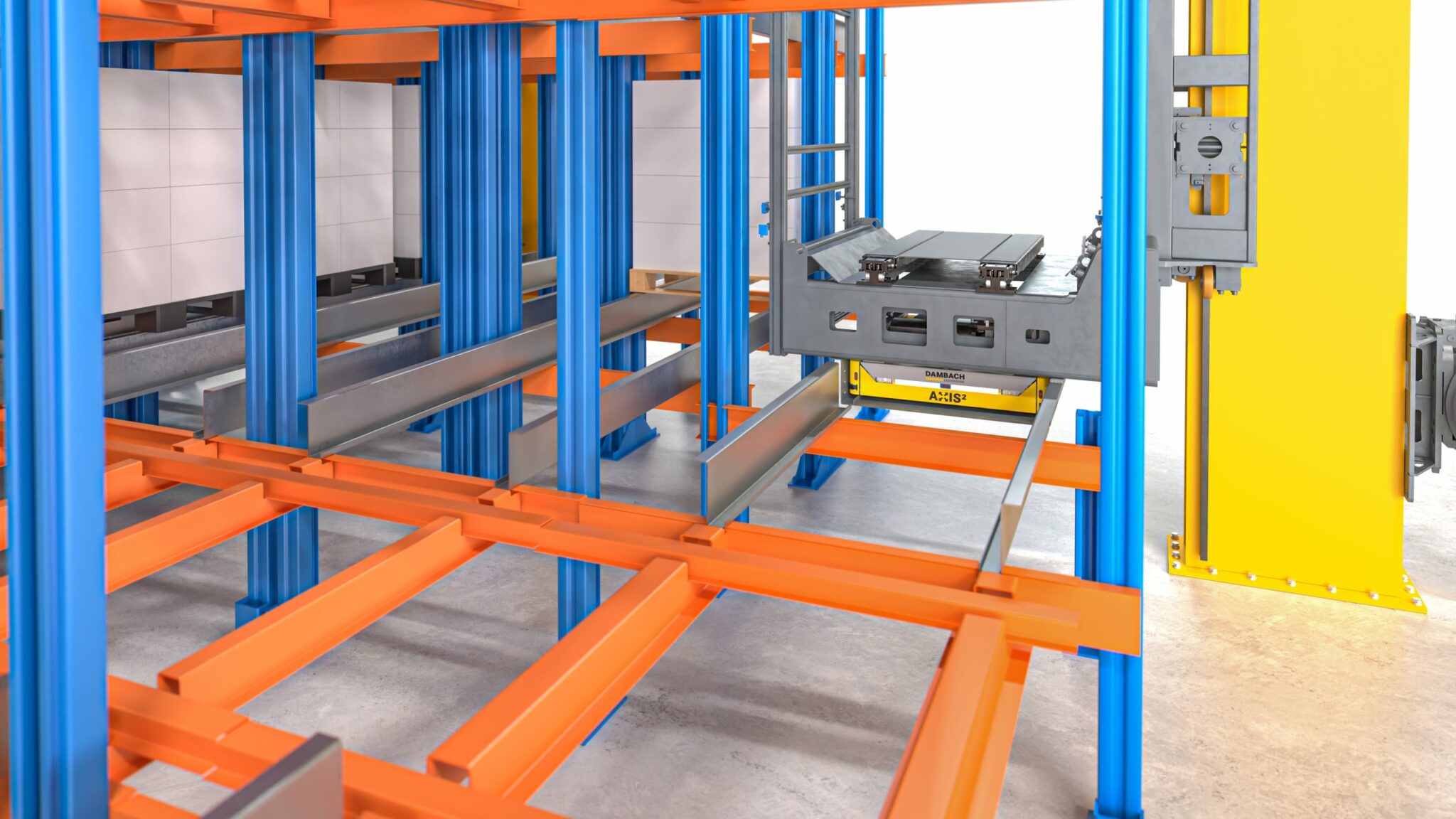

Frazier’s racking structures, crafted with durable, structural steel, provide long-lasting strength and optimal shuttle navigation. Our use of standardized profiles not only delivers economic benefits but also supports smooth shuttle operation.
Advanced Logistics Robotics:
24/7 operation is enabled by an advanced energy storage system, minimizing fire load and operating in robust cold-storage conditions. The powerful on-board PLC executes advanced motion control, precise positioning, pallet detection, collision avoidance and much more.
Robust 4 Way Shuttle Technology
Developed through collaboration between Frazier and Dambach, this solution combines Dambach’s hardware and software with Frazier’s racking expertise. It addresses U.S. market needs with a bi-directional shuttle system that’s a cost-effective alternative to traditional setups, featuring Fleet Management Systems and WCS integration for enhanced efficiency and adaptability.
Partnership with Integrators
This solution is a joint development between Frazier and Dambach, strategically designed for distribution through our trusted network of integrator partners, ensuring seamless integration and enhanced support across a wide range of industries.
Technical Innovations
Designed to handle maximum payloads of 3,300 lbs per shuttle, the Axis2 is versatile and suitable for a wide range of applications, offering both strength and flexibility to meet diverse operational needs.
Axis2 offers impressive acceleration of up to 1.6 ft/s² and a maximum traveling speed of 295 ft/min, ensuring fast and efficient movement within various environments.
Axis2’s Lithium Titanate (LTO) battery provides up to 2 hours of operation, ensuring extended performance for uninterrupted productivity.
Axis2’s Lithium Titanate (LTO) battery recharges in just 5-8 minutes, minimizing downtime and ensuring quick turnaround for continuous operation.
Axis2 achieves an average transfer time of 5 seconds, ensuring quick and efficient handling for seamless operations.
Axis2 features an approximate lifting time of 4 seconds, providing fast and efficient vertical movement for enhanced productivity.
The Axis2 Cold Store model is designed to operate in environments with temperatures as low as -22°F, ensuring reliable performance in cold storage applications.

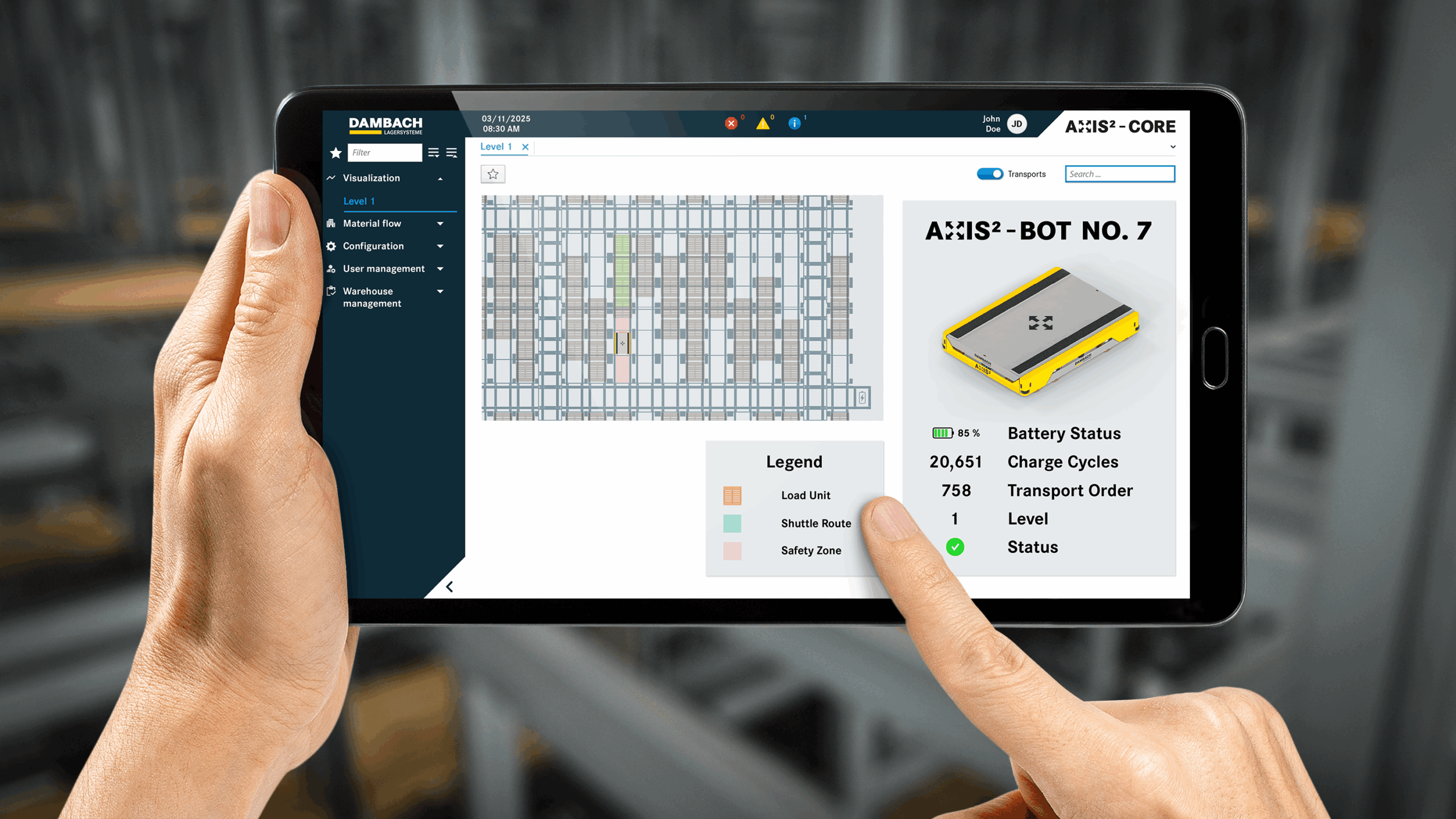

Axis2 software is highly adaptable, supporting everything from basic transport orders to complex queuing and FIFO-LIFO operations. It offers scalable solutions, from WCS for transport coordination to advanced WMS for comprehensive SKU and process management.
Durable Components
Rack System
Z-profile channel height: 7.5 inch
Lower approach dimensions of shelving system: 17.5 inch
Approach dimension level to level: 14 inch
Deck Lid
The Deck Lid enables efficient handling of heavy payloads, supporting up to 3,300 lbs per shuttle. With a lifting time of approximately 4 seconds, it ensures fast and reliable operation, contributing to streamlined throughput in high-demand environments.
Battery System
Axis is powered by a state-of-the-art Lithium Titanate (LTO) battery, delivering high performance with a 2-hour runtime. Designed for efficiency, the battery recharges in just 5–8 minutes at an integrated station within the rack system, minimizing downtime and maximizing productivity.
Wheels & Traction System
Equipped with twelve driven wheels, Axis ensures stable, reliable movement in all directions. This design provides consistent traction, even during transitions from aisle to channel or onto a lift. With a maximum traveling speed of 295 ft/min, it maintains both agility and control in dynamic environments, including cold storage.
How It Works

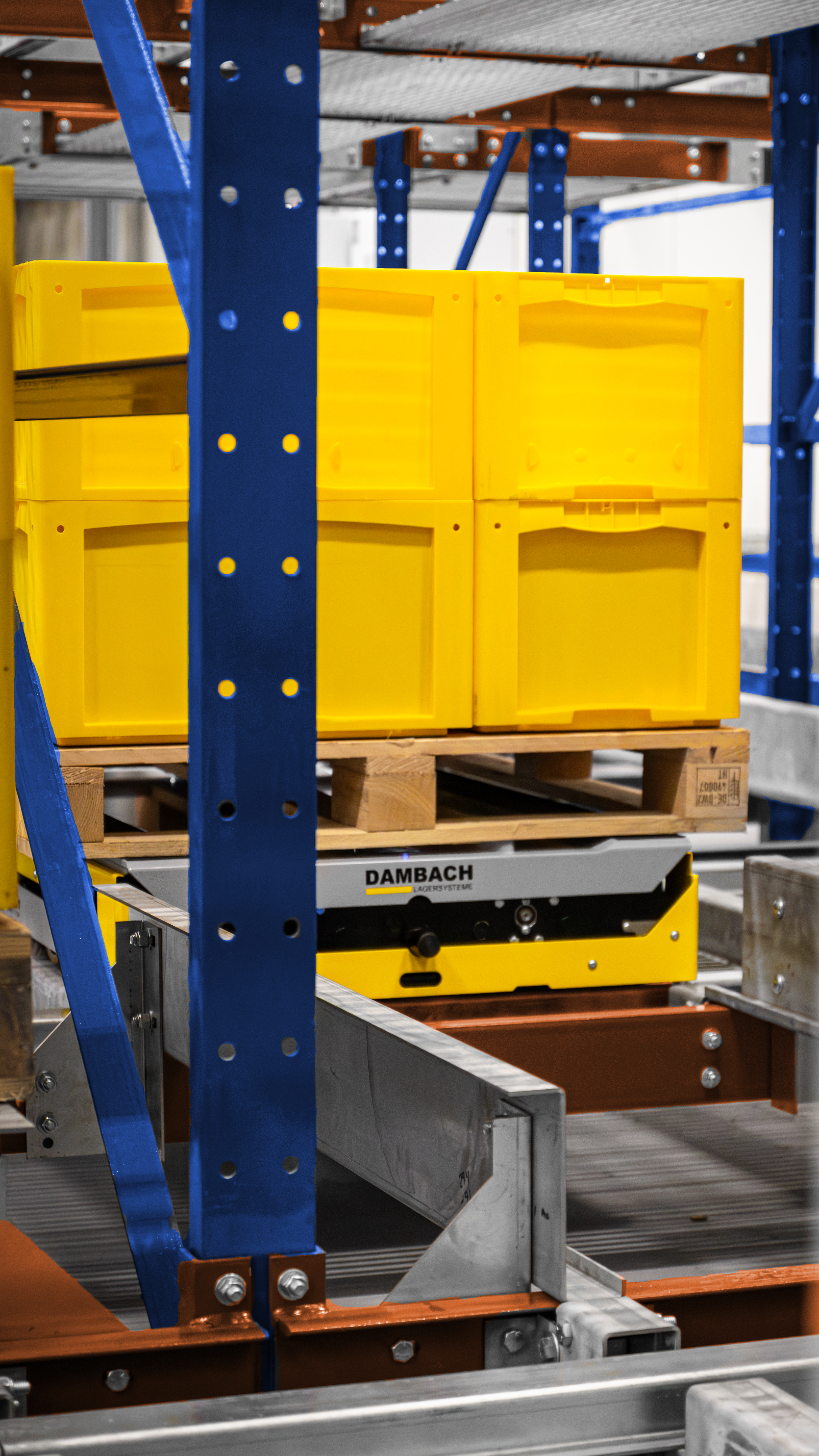

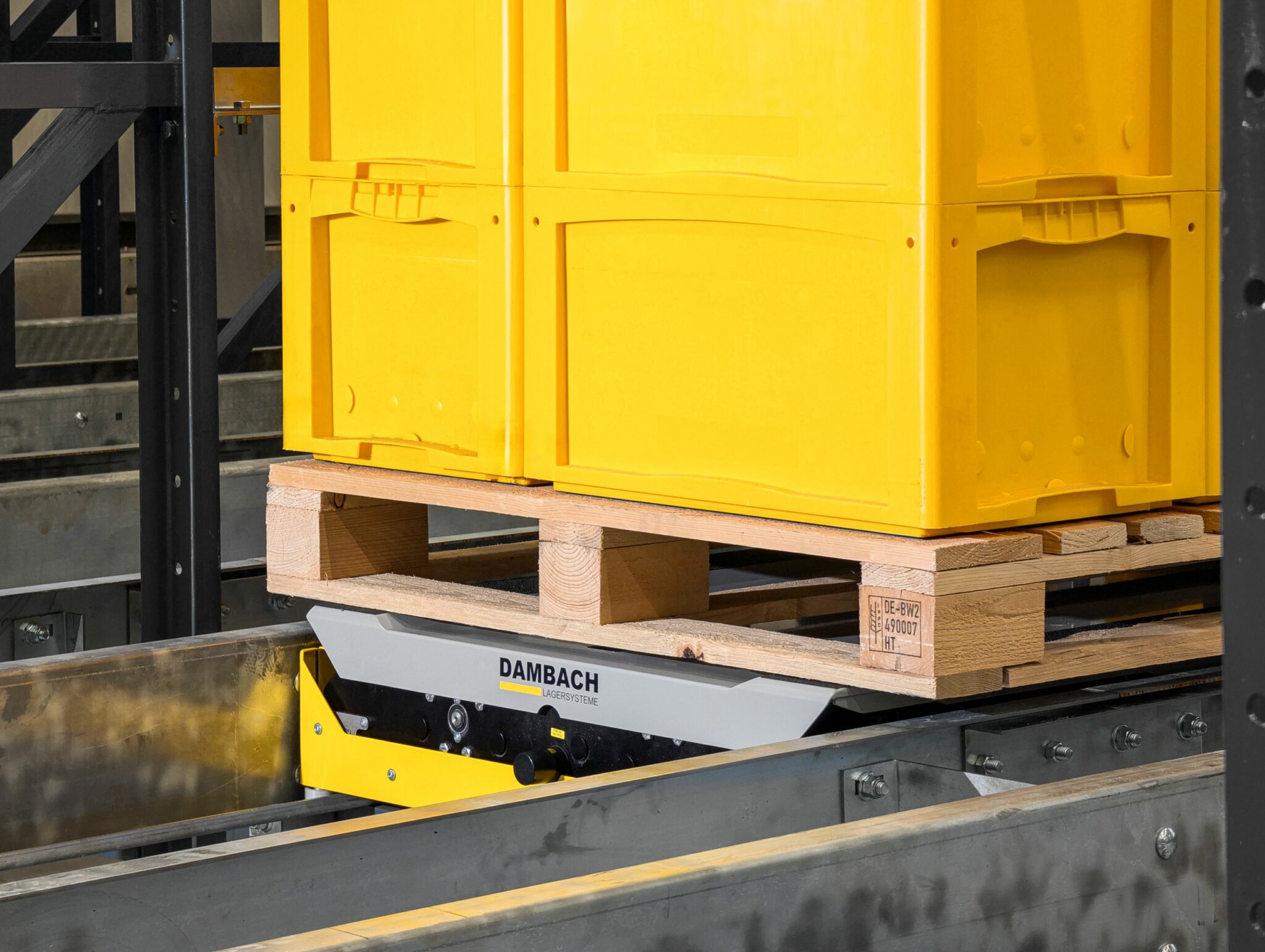

Axis2 Shuttle is loaded into the racking.

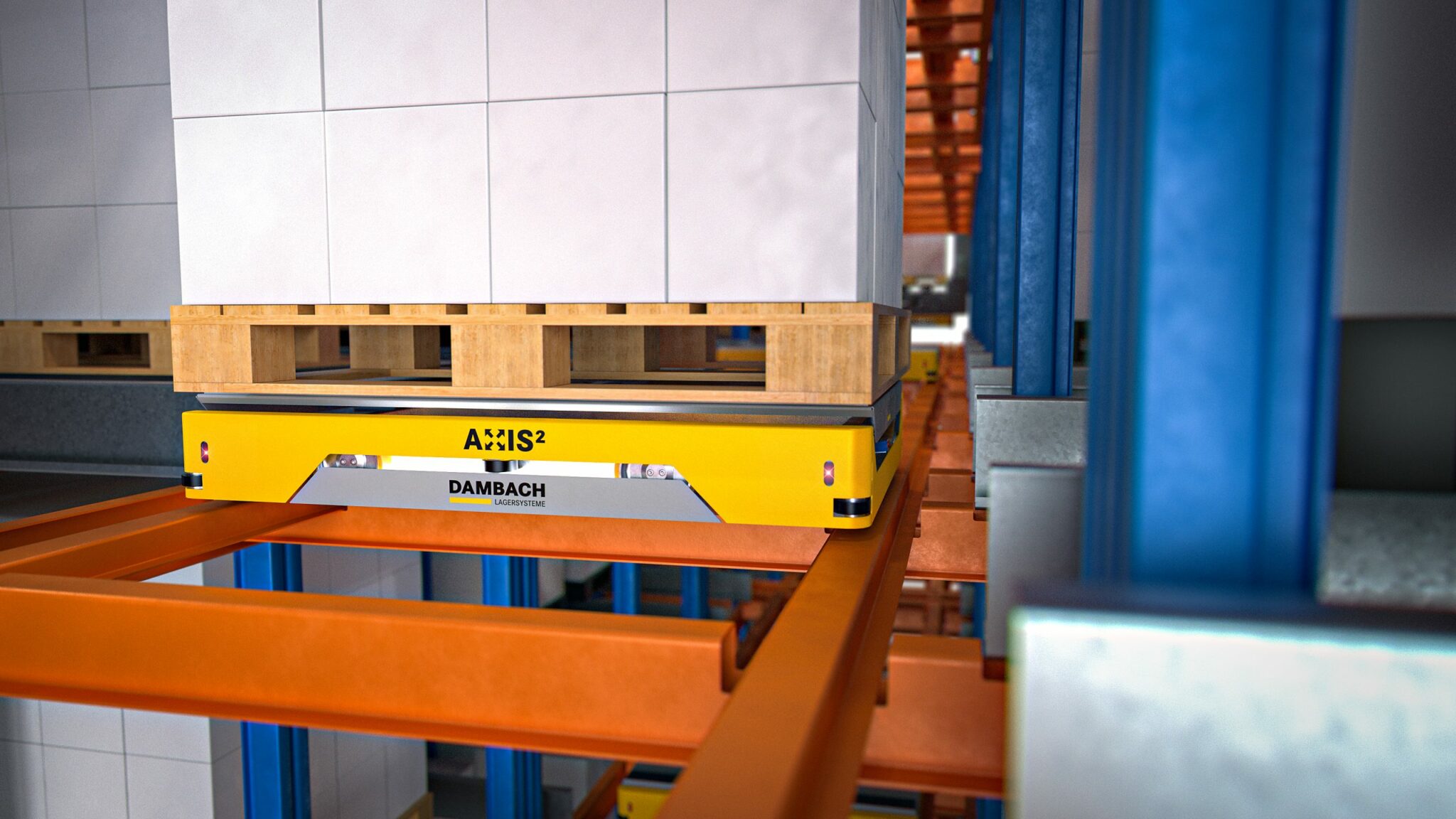

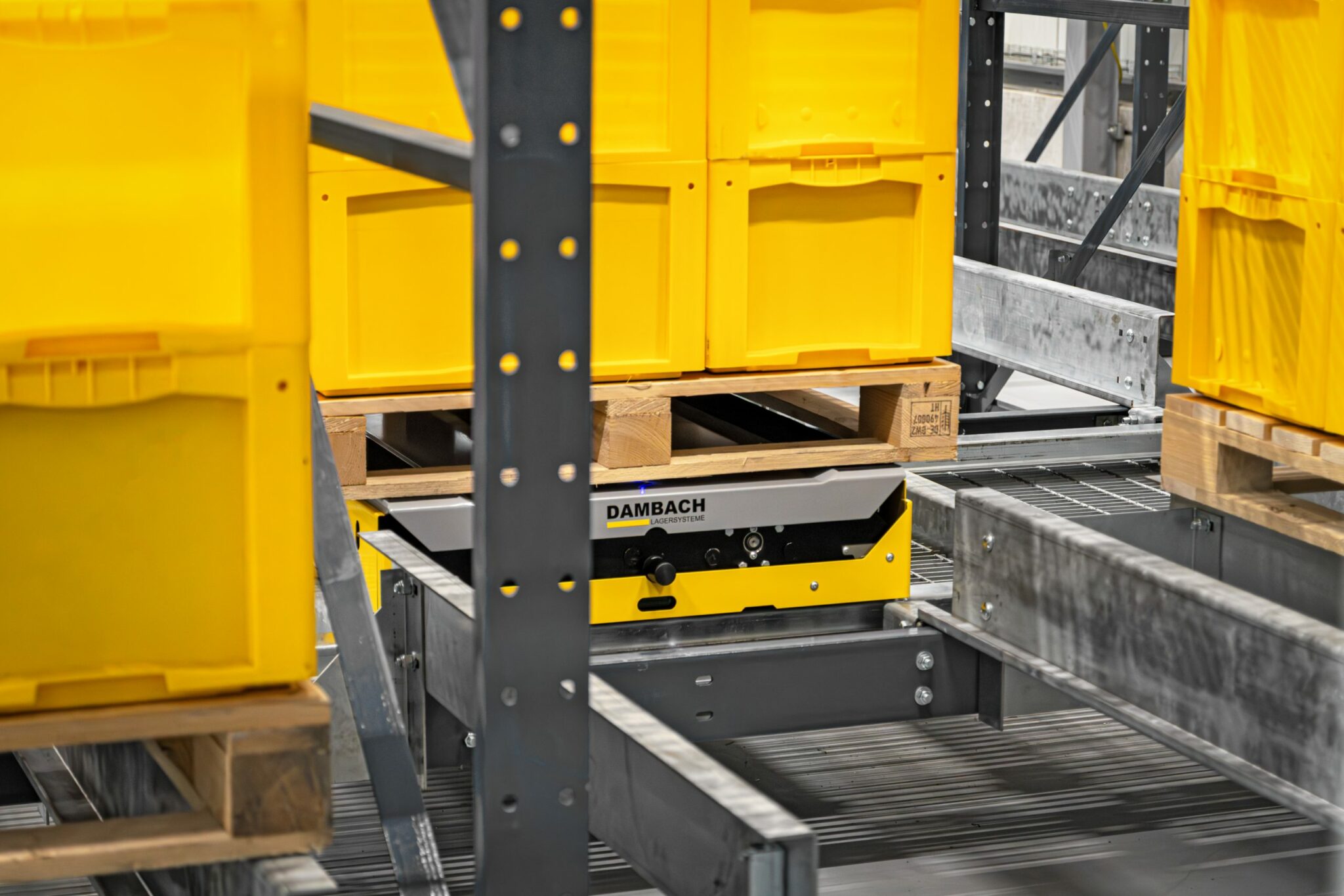

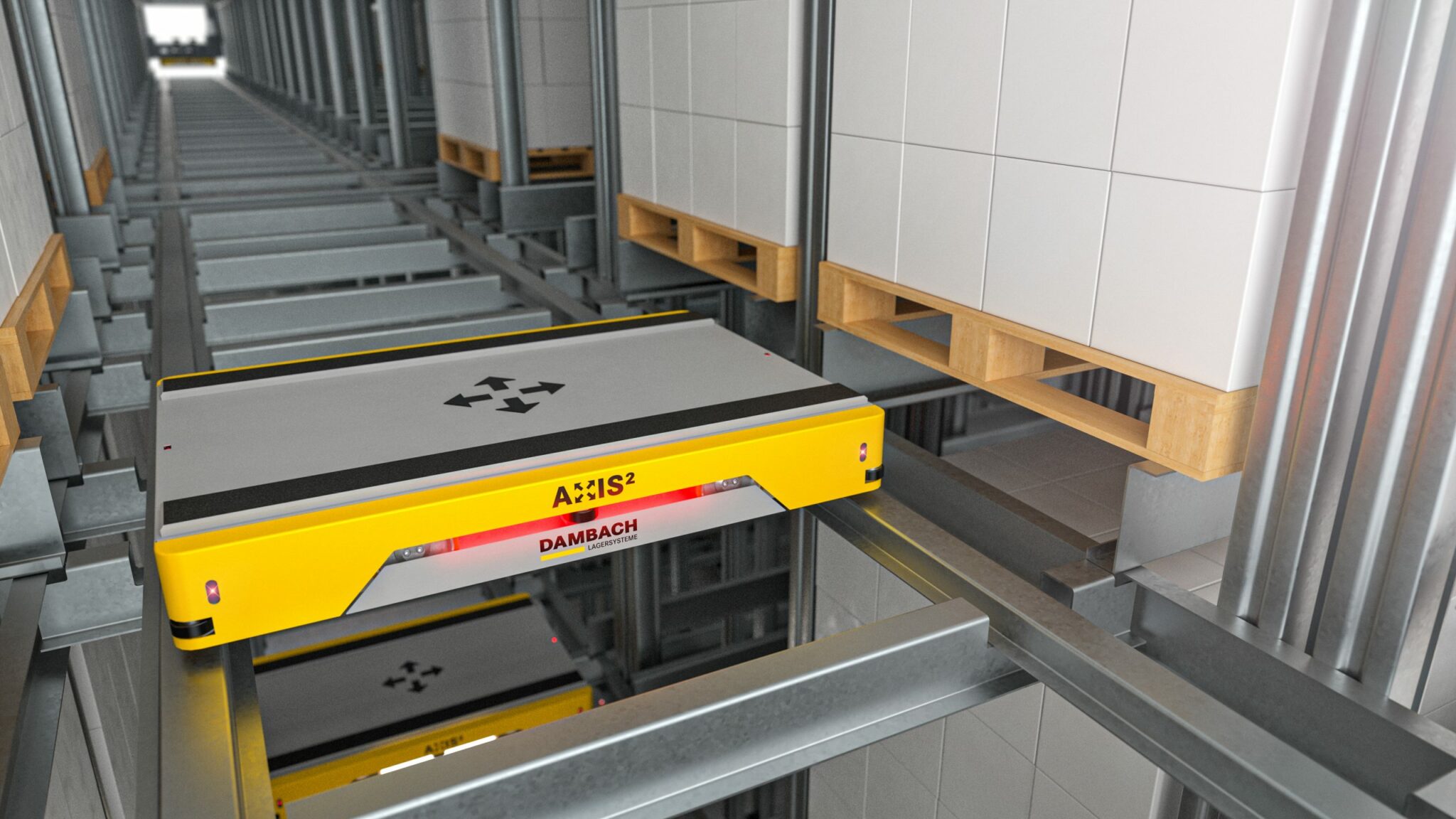

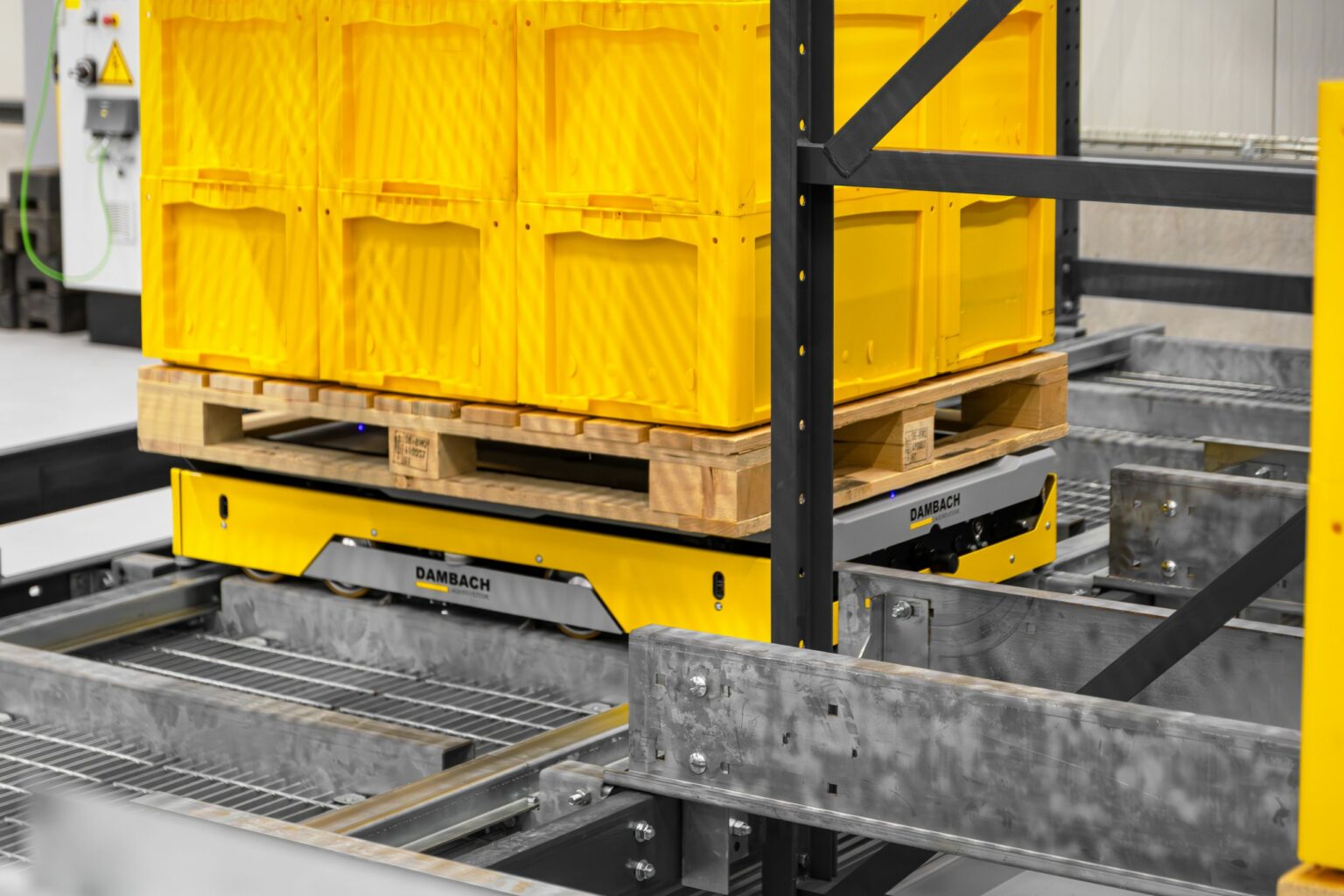

The free roaming multi-directional pallet shuttle navigates the racking via intelligent shuttle control and software. It moves north, south, east and west to move pallet loads for put away and picking. Genuine 24/7 operations are afforded thanks to innovative load management and modern energy storage systems

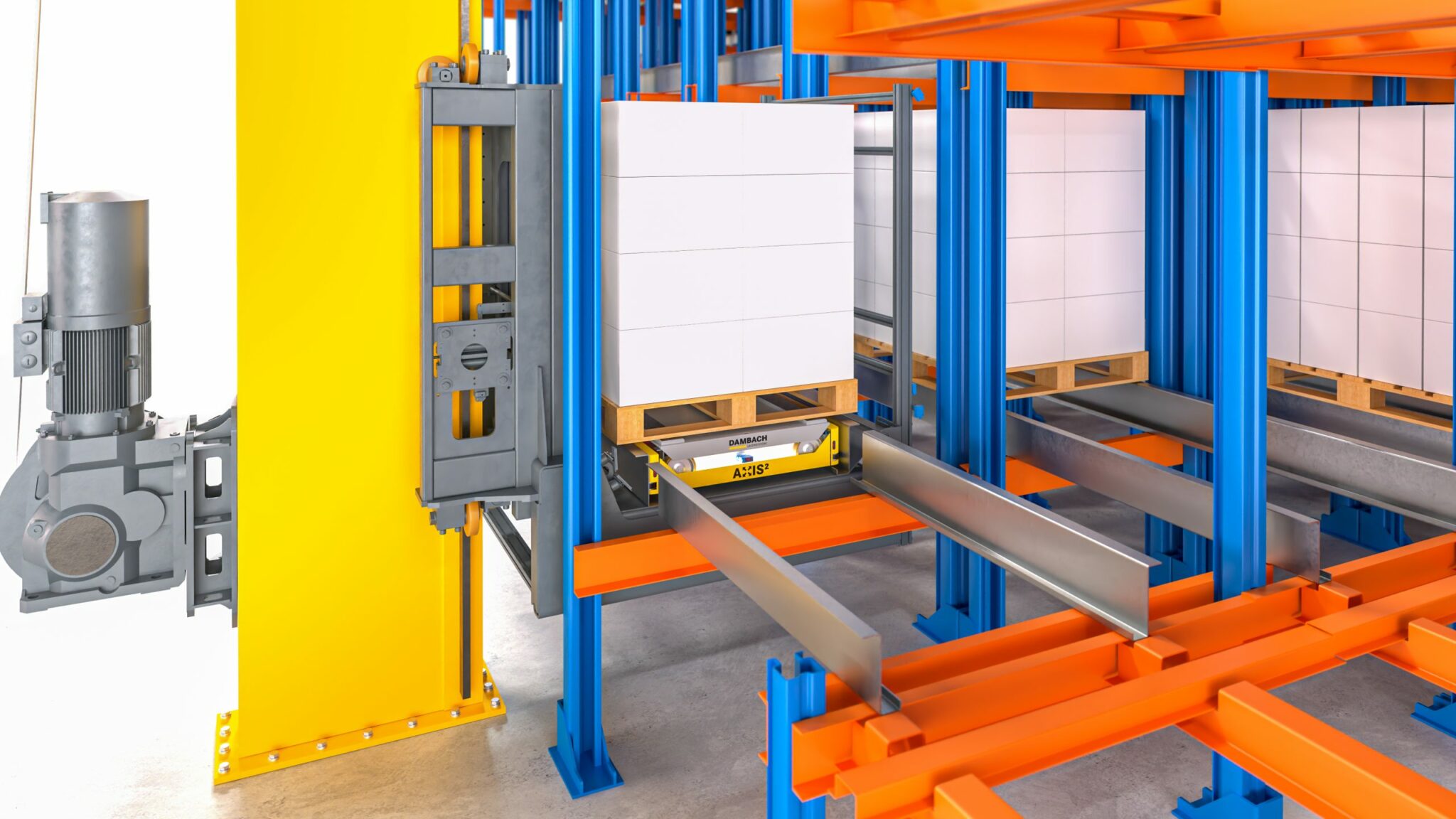

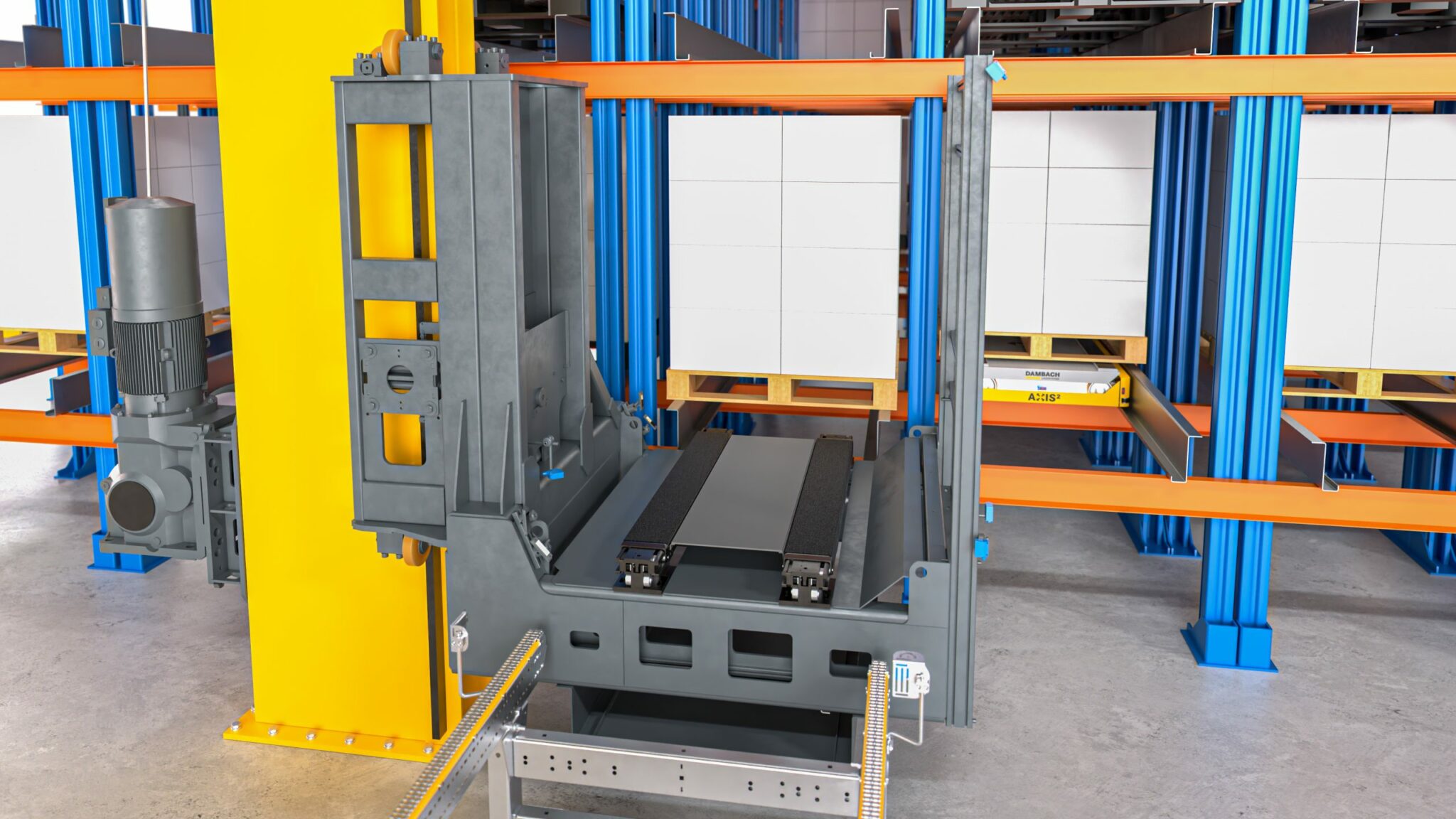

The transfer process of the pallet and shuttle between levels of the racking system is done via a vertical conveyor.
The shuttle charges its battery via an in-rack charging station.
