9” Connector
Provides 1” adjustability and uses bolted connections that cannot be dislodged by impacts from material handling equipment, ensuring maximum safety and durability.
Bolt-On Rub Rail
A heavy horizontal impact channel installed at floor level to protect uprights and frames from pallet or vertical damage, enhancing the durability and safety of your pallet racking system.
Boxed Front Columns
Two structural channels welded back-to-back provide enhanced resistance to fork truck collisions, increase overall load capacity, and maximize torsion resistance for a stronger, more durable pallet rack system.
Bull Nose Protector
4″ high aisle column protectors that shield the front columns of racking by deflecting impacts from pallets or fork trucks, keeping your system safe and durable.

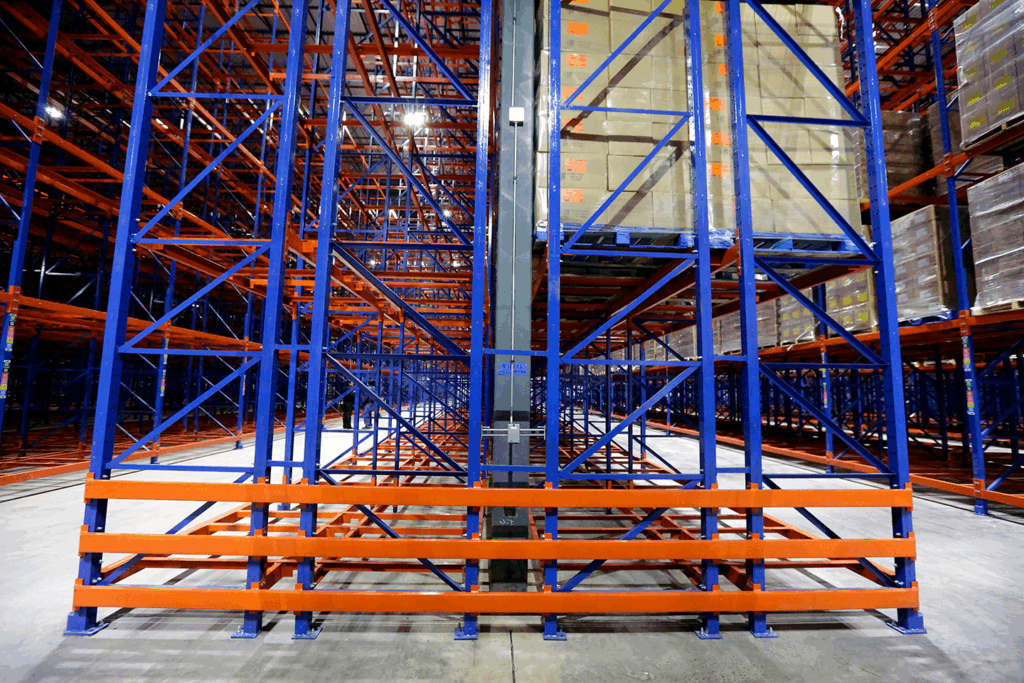

Capped Row End Protector
Beveled structural steel channels at the end of each aisle guard against frame damage while reducing “catch points,” making them safer for fork trucks compared to uncapped row end protectors.
Label Beam®
Features a 1/8″ recessed web to protect bar code labels and pallet support bolts from damage, ensuring operator accuracy.
Load Bearing Pallet Support
Designed to bear the full weight of your products, not just act as a safety bar, ensuring stability and reliable performance.
Engineered for Excellence
Our cornerstone product, Sentinel® Selective Pallet Rack, is Frazier’s standard pallet rack, built for exceptional durability and adjustability with fully interchangeable parts. The development of selective pallet rack established Frazier’s reputation as a leading global manufacturer of structural steel storage systems, and for over 75 years, its high quality and reliability have upheld that legacy. Sentinel® is designed, manufactured, and installed to the same rigorous standards as our custom racking systems, providing a dependable, versatile solution for warehouses of any size.
Key Features
Structural Steel Construction
Offers superior abuse resistance, stability, and flexibility compared to roll-formed steel racks, ensuring long-lasting performance in demanding warehouse environments.
Bolted Connections
Engineered for 360° strength, these connections won’t dislodge even from upward impacts by vehicles or pallets, ensuring maximum safety and stability.
No Unique Tools for Assembly
No unique tools or clips are required, making setup quick, simple, and hassle-free.
Adjustable Shelf Levels
With 1″ center adjustments, Sentinel® Selective Pallet Racking offers maximum flexibility to adapt to your evolving storage needs.
Innovative Features

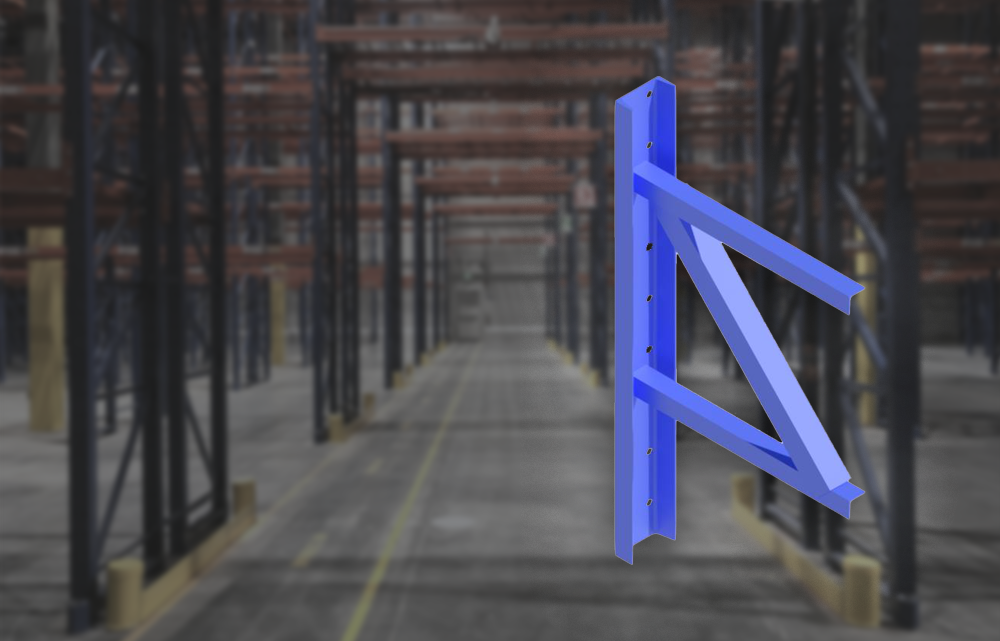

Z-Brace Frame Design
Frazier’s standard Z-Braced design features time-tested, high-strength, hot-rolled structural components. Horizontals are typically spaced 40″ apart, with custom frames available. The Z-Brace uses diagonals in compression and tension, and structural angles enhance durability and load capacity while reducing stress on horizontal joints.
Double Deep Configuration Option
In addition to single deep systems, Sentinel® Selective Pallet Rack is available in double deep configurations, providing greater storage density without sacrificing SKU selectivity.
Accessories for Added Value
Sentinel® can be enhanced with a range of accessories to maximize safety, organization, and efficiency.

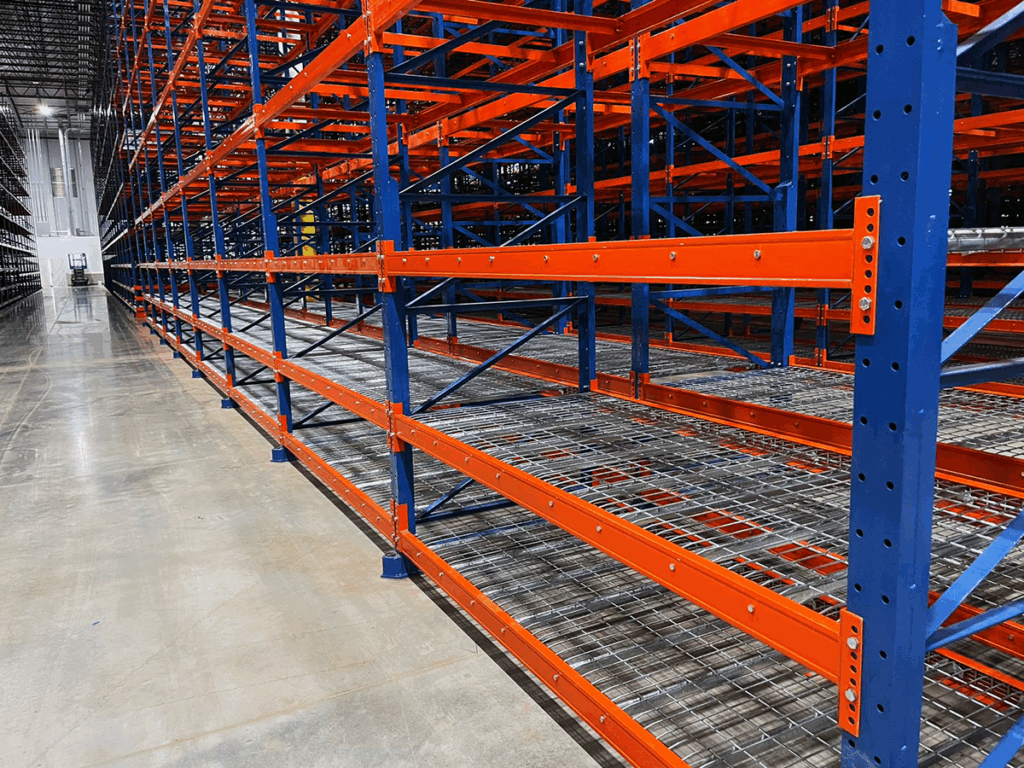

Options include Wire Screen Decking that captures inside the beam, Label Beams® with a recessed web to protect labels, and more—each designed to add lasting value to your operations.
Custom Frame Design Options

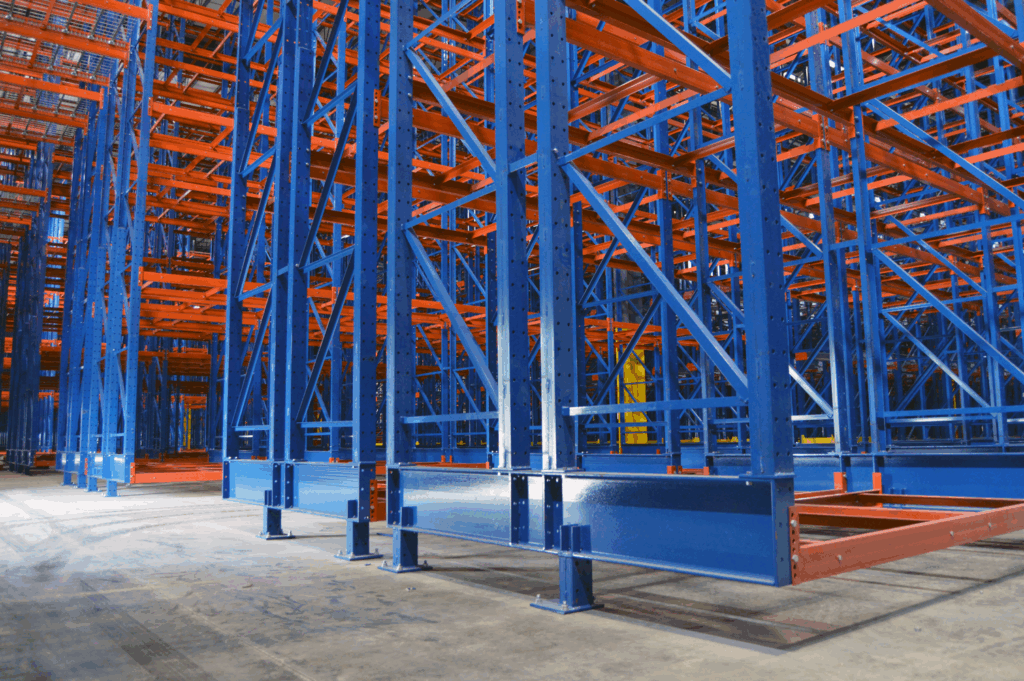

Sentinel® Selective Pallet Rack can be engineered with specialized frame designs, such as Raised I-Beams or Cant Legs, to integrate seamlessly with specialty handling equipment and maximize storage space utilization.
Technical Excellence
Sentinel® Selective Pallet Rack can be designed and manufactured to accommodate a wide range of pallet and product load sizes, ensuring a perfect fit for your storage needs.
Sentinel®’s beams offer easy 1″ adjustability, allowing for quick reconfiguration to accommodate changing product mixes.
Sentinel® is built to grow with your business — easily add more racking to expand your system as your needs evolve. All of its parts are completely interchangeable and allow you to add more racking as your need for additional storage increases.
In many parts of the country storage rack must, by code requirements, be designed to withstand the ground motion from earthquakes. Frazier racking is designed for the seismic forces of the racking’s original installation location. Frazier should always be consulted as the OEM before moving the rack to a new location.
Durable Components

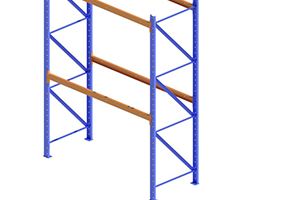

Upright Frames
Each frame is made of two structural columns that carry the pallet load, with horizontals and diagonal members forming the bracing for strength and stability.

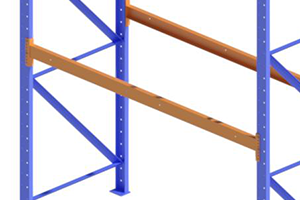

Shelf Beams
Made of hot-rolled structural steel in 3″, 4″, or 5″ heights, with adjustable 1″ increments for flexible storage configurations.

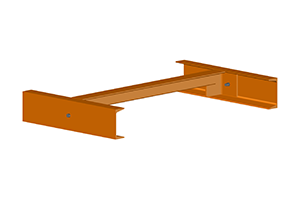

Pallet Supports
Pallet supports are required when pallet overhang is less than 2”. They are designed to support the full weight of the pallet. Two pallet supports per pallet are suggested.
Product Showcase

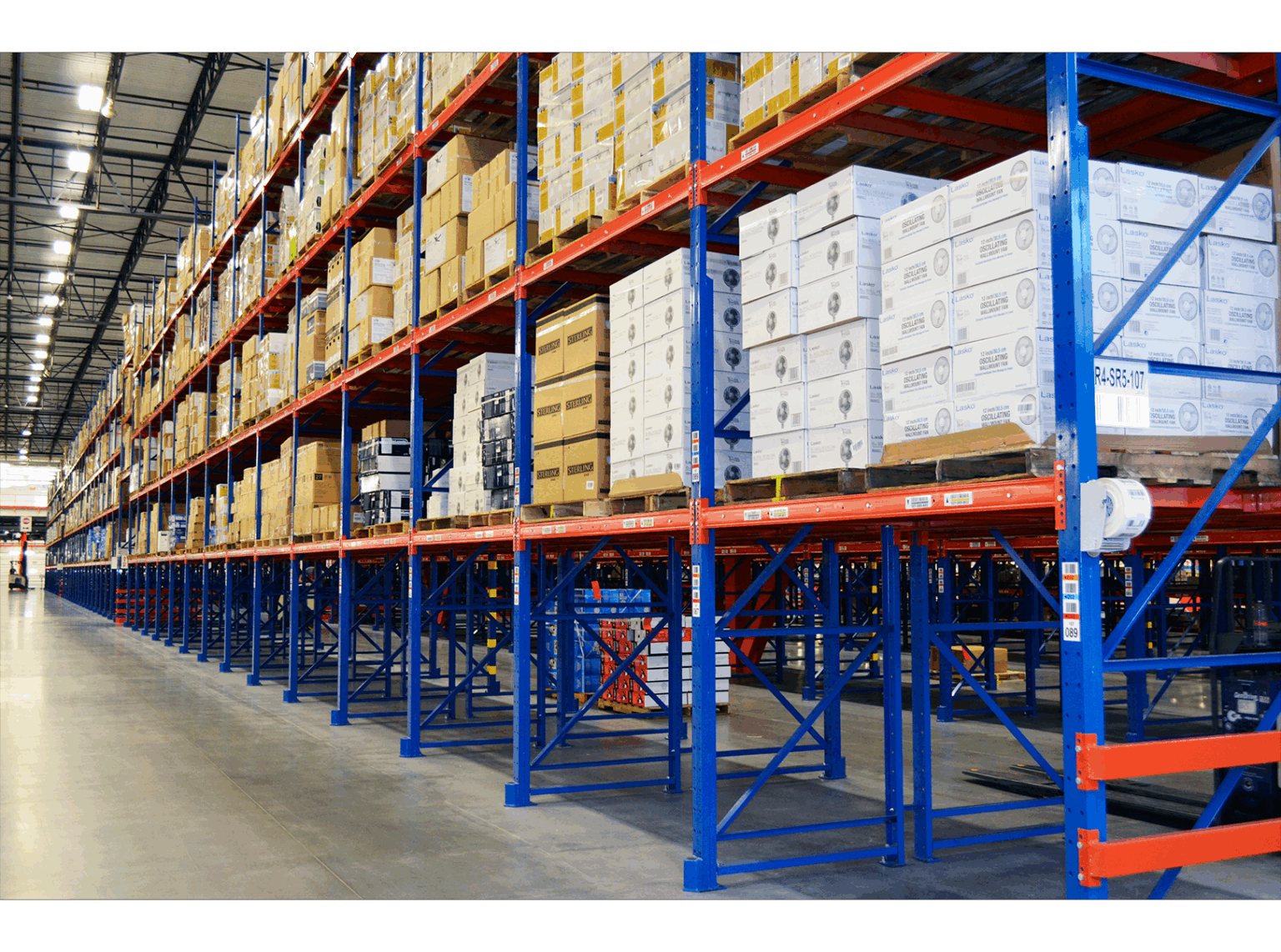

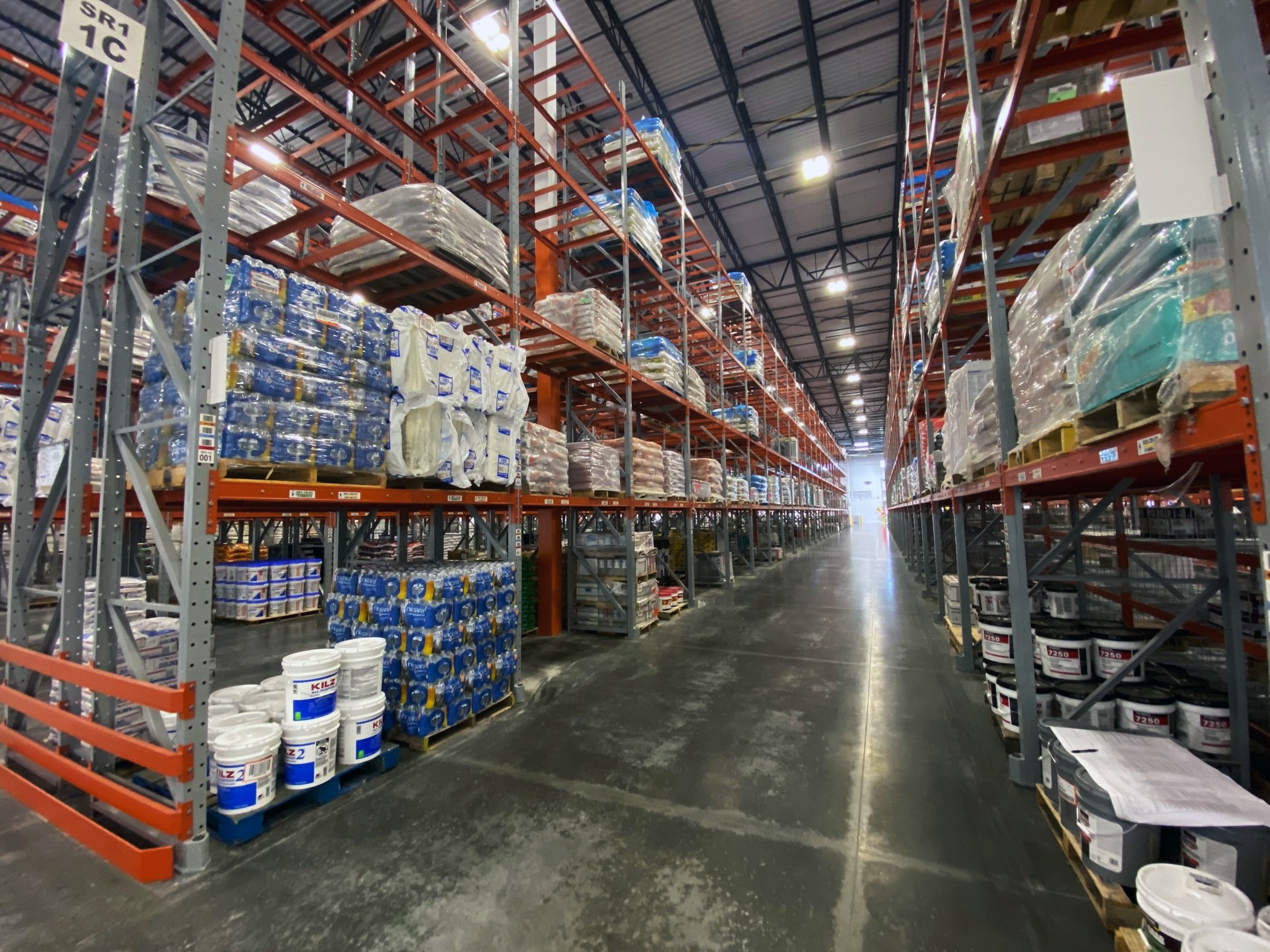

A Sentinel® Selective Pallet Racking system with Label Beams® and custom gray paint stores a variety of products, making them easily accessible.

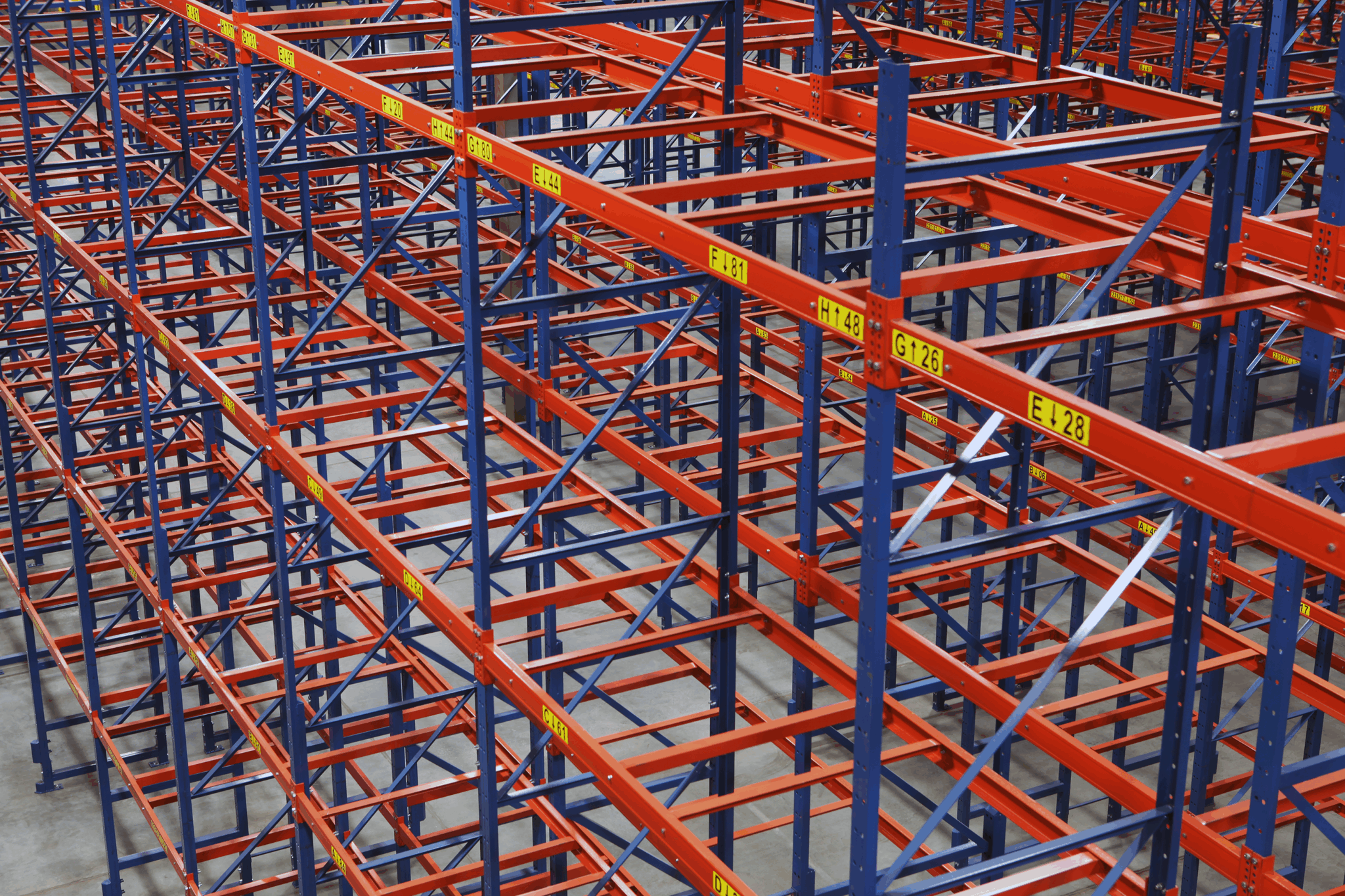

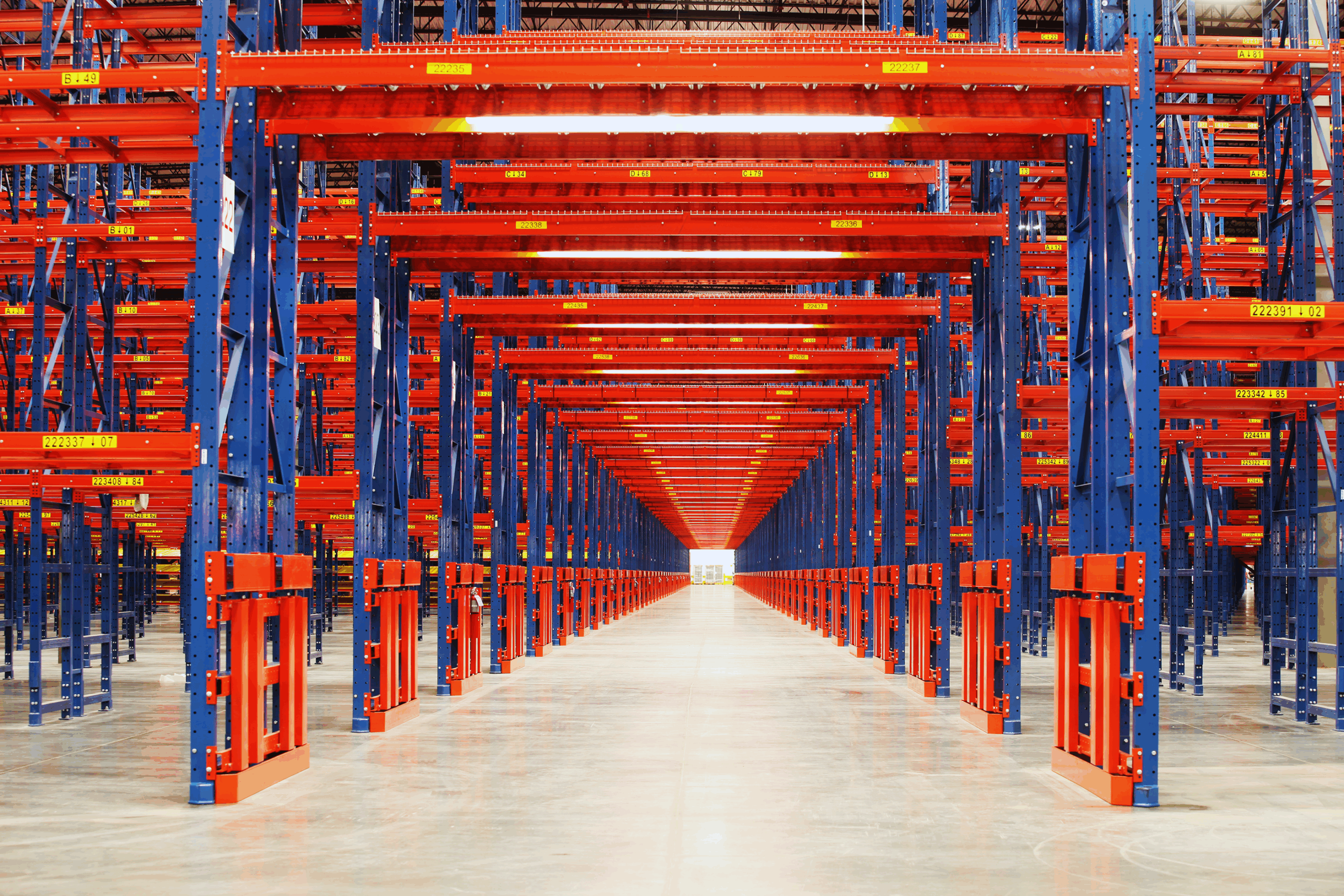

A freshly installed Sentinel® Selective Pallet Racking system awaits to be loaded with products.

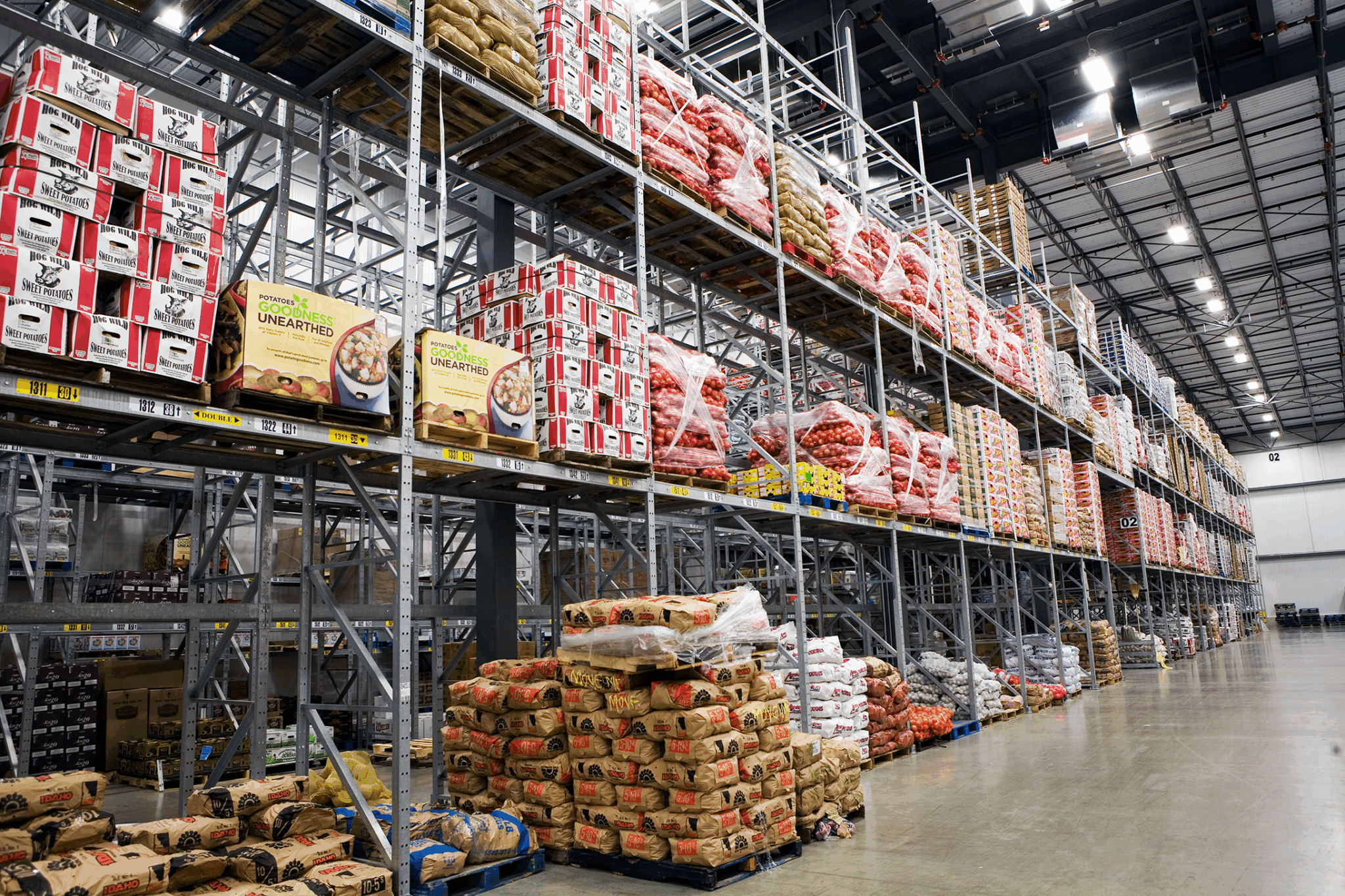

A galvanized Sentinel® Selective Pallet Racking system. Systems can be galvanized for environments where washdown of the racking occurs more frequently.
A Sentinel® Selective Pallet Racking system with Pick and Delivery (P&D) stations at the end of every other row. In this application, the P&D Stations are used to store empty pallets.

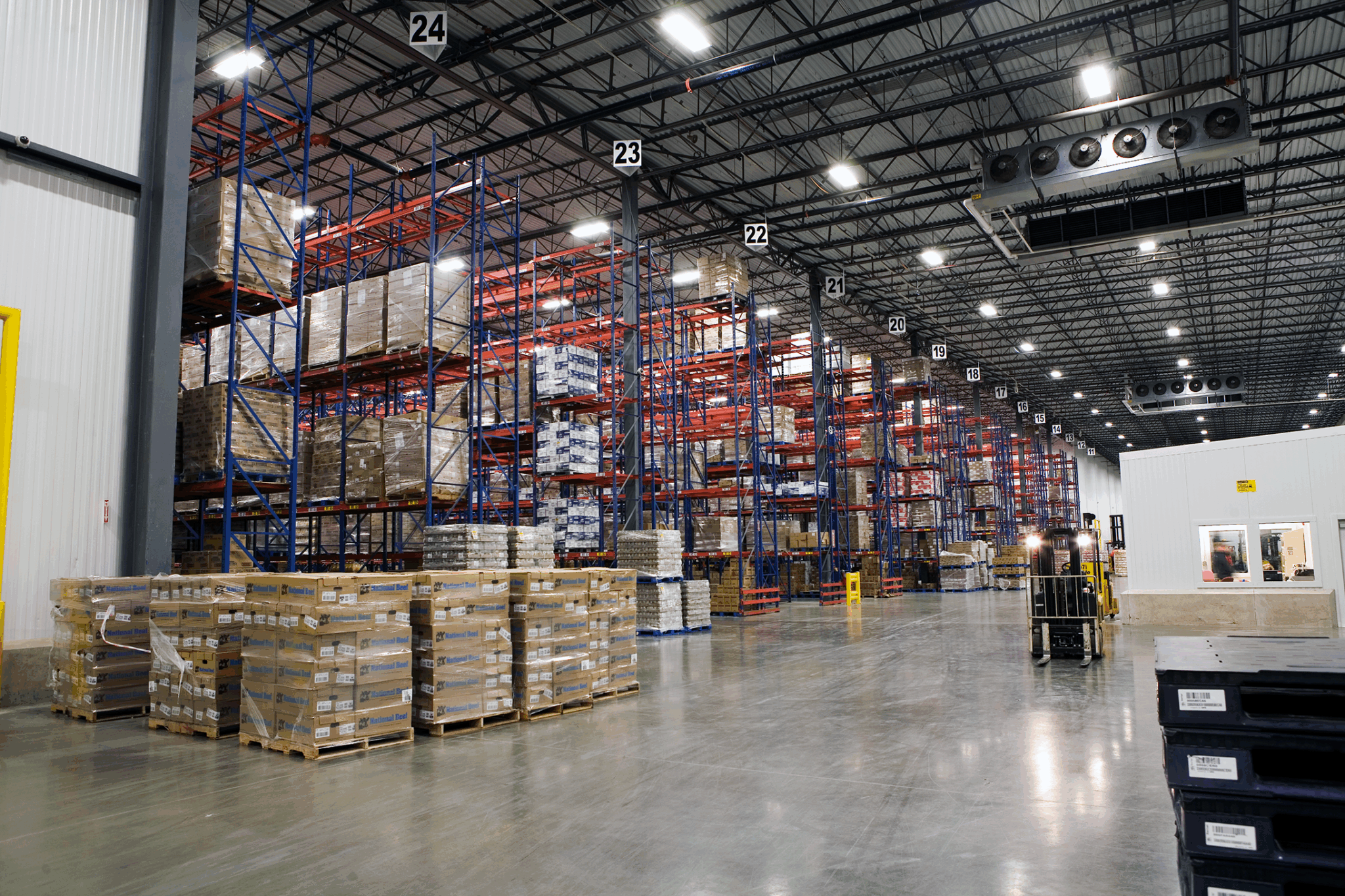

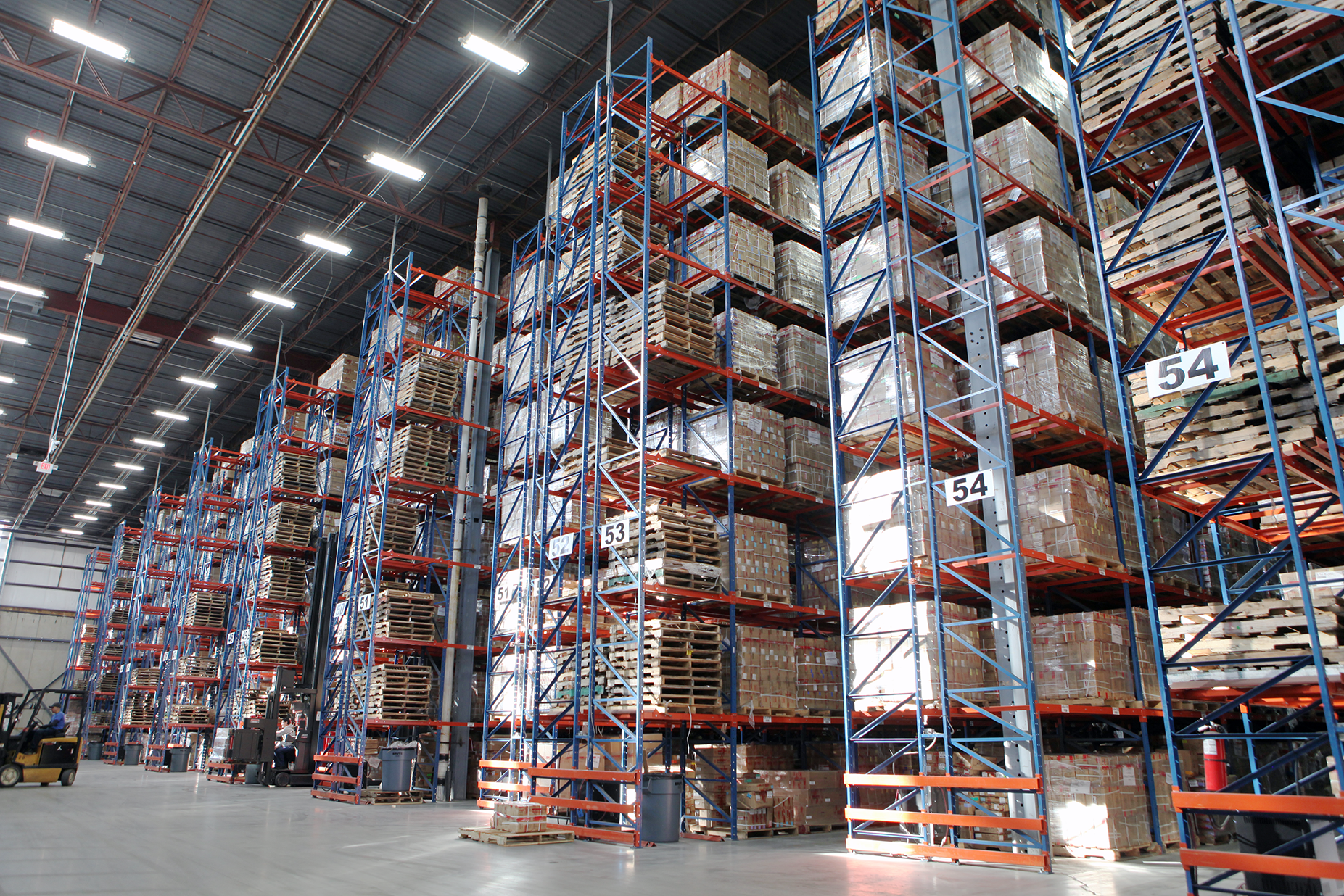

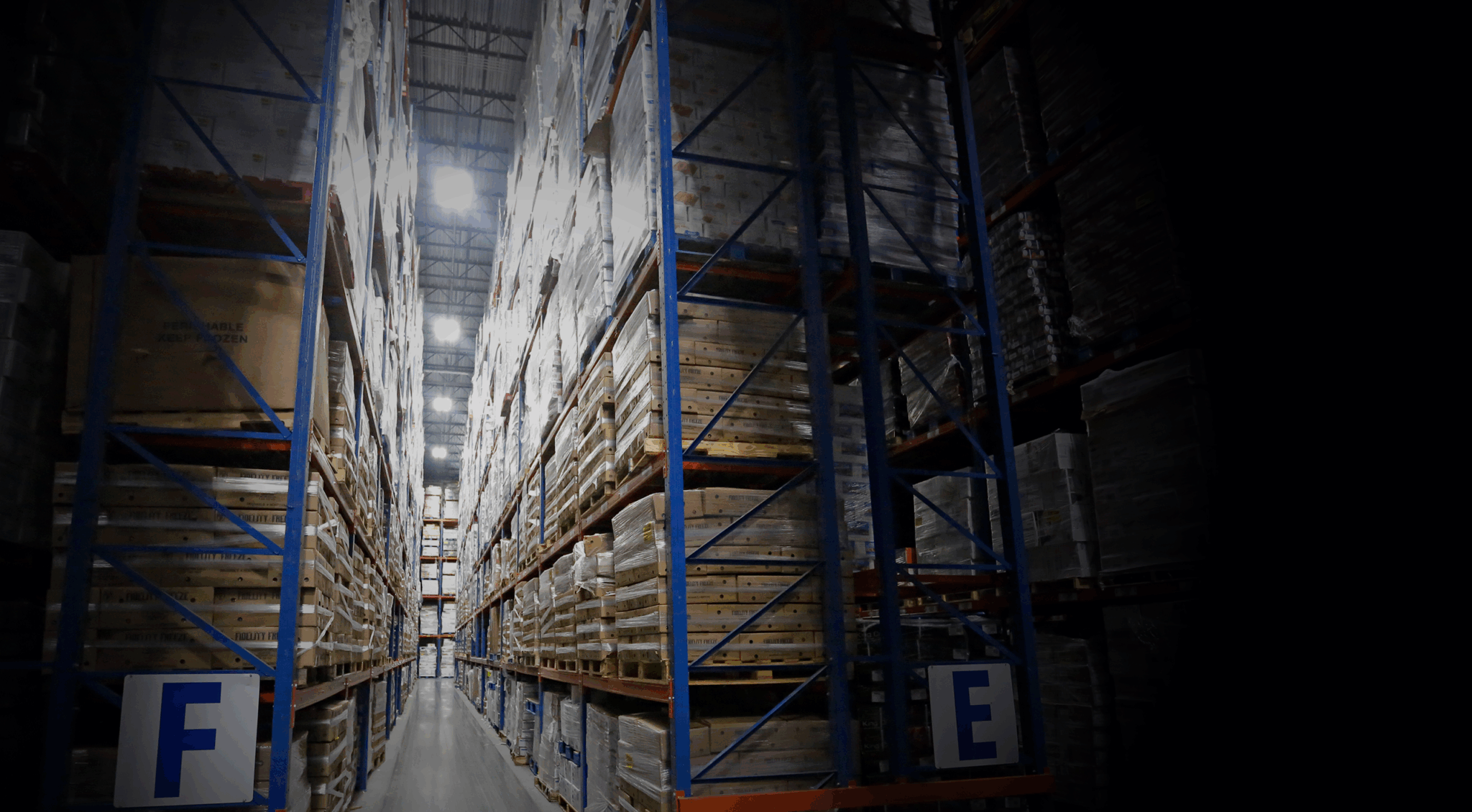

Row after row of Sentinel® Selective Pallet Racking stores grocery products.
