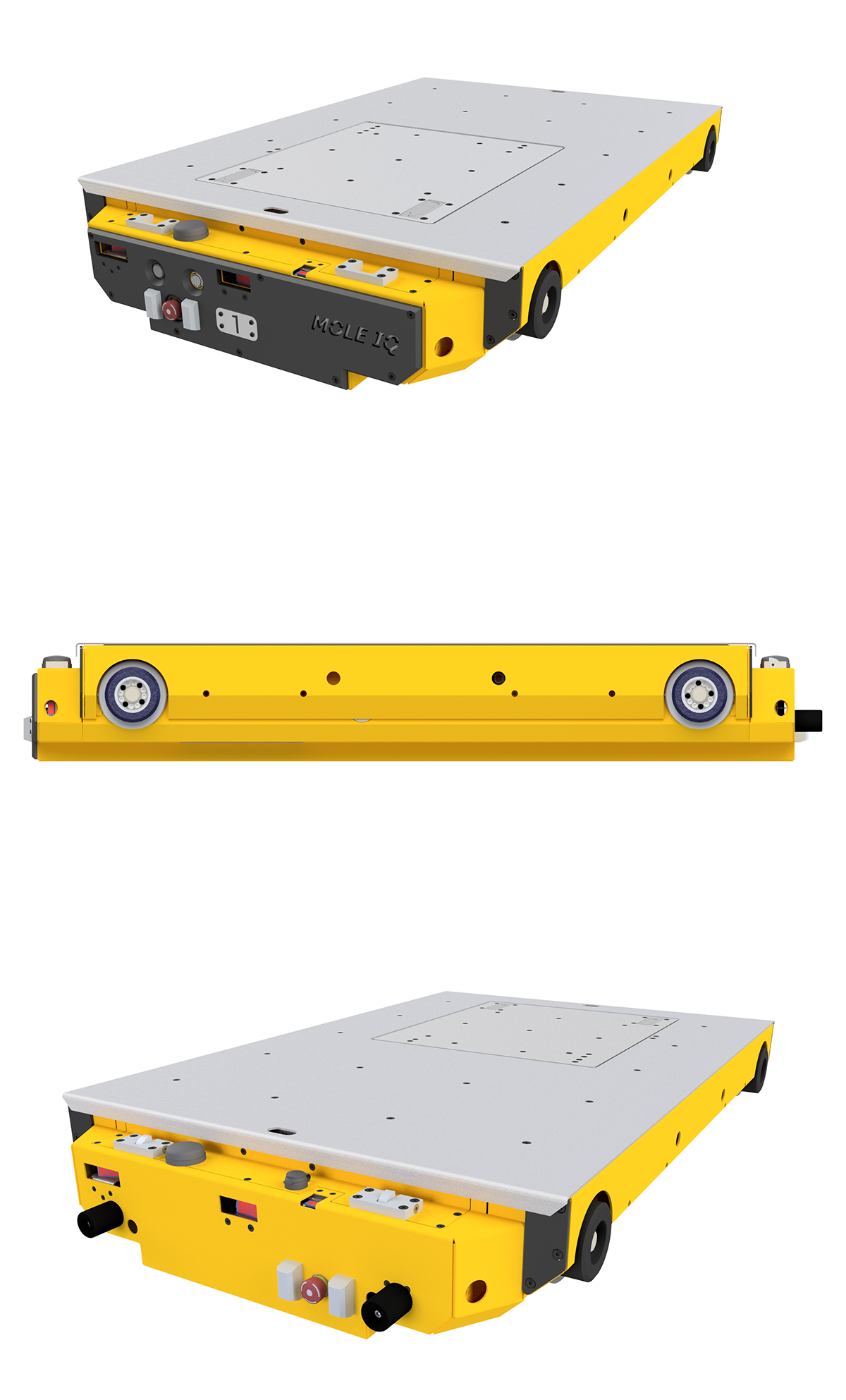

Mole IQ
A Legacy Redefined. The Pallet Mole set the tone. Now, it’s time for the next evolution… Introducing Mole IQ. Smarter. More connected. Exceptionally reliable. Welcome to the IQ Universe—where deep lane storage meets next-gen intelligence.

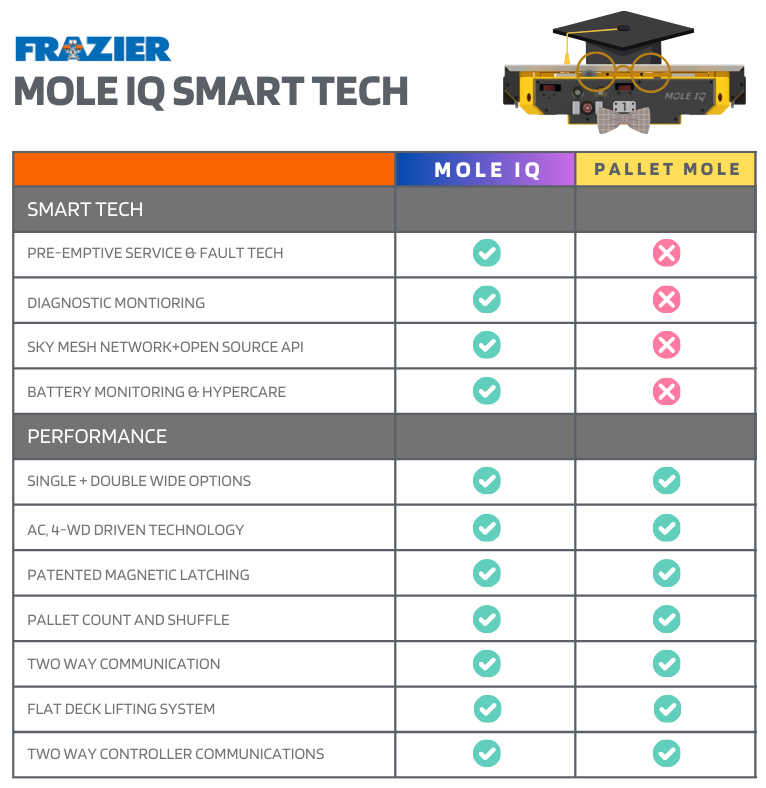

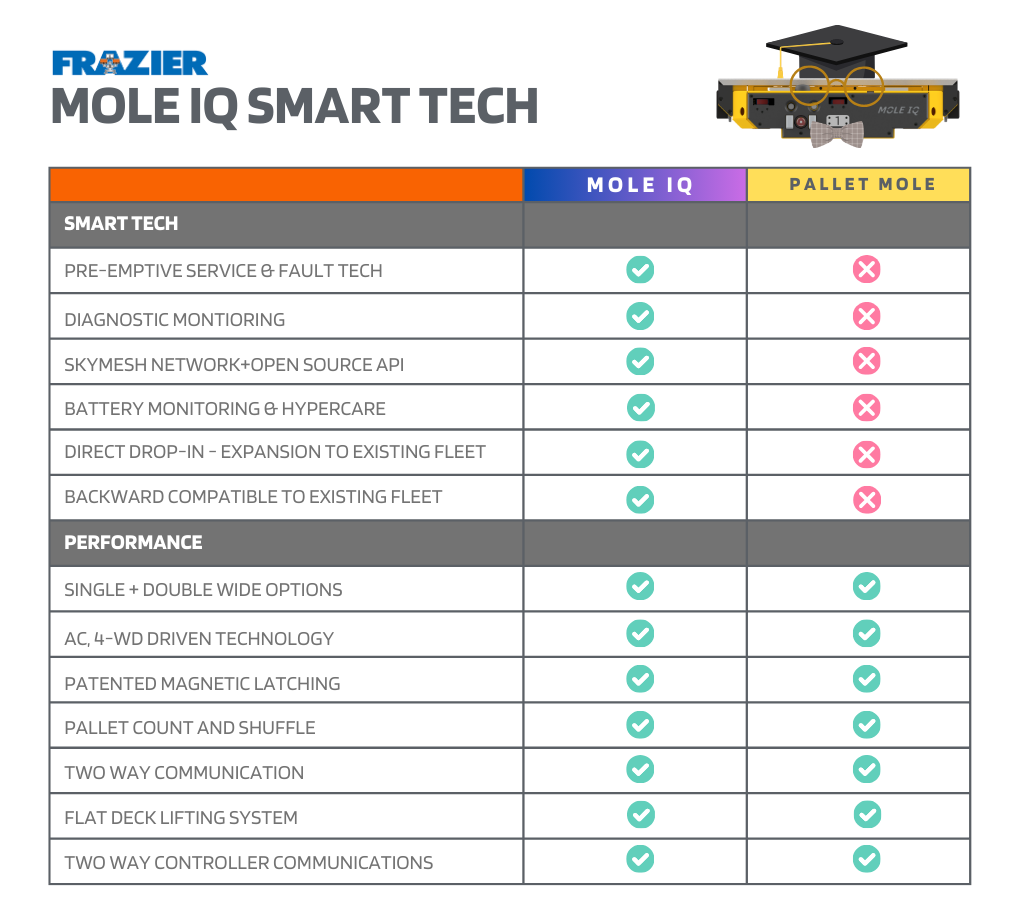

Standard Features:
- SkyMesh full remote dynamic monitoring for Battery, Shuttle Control, System Status, Run Time and More – accessible from any smart device
- Shuttle Service Report
- Legacy RF compatibility with WiFi options (SkyMesh)
- Patented Magnetic safety latching system as proven on the original Frazier Pallet Mole
- Hypercare capabilities for enhanced system servicing and support
- End of rail sensor to automatically adjust to variable rail lengths
- Fully compatible with existing Frazier Pallet Mole racking systems
Optional Features:
- Open-source API for seamless integration with existing WMS and WES systems
- Optional pallet and mole tracking software
- One touch summon to aisle location for entire fleet
- Over-the-air (OTA) updates for rapid feature deployment and customization

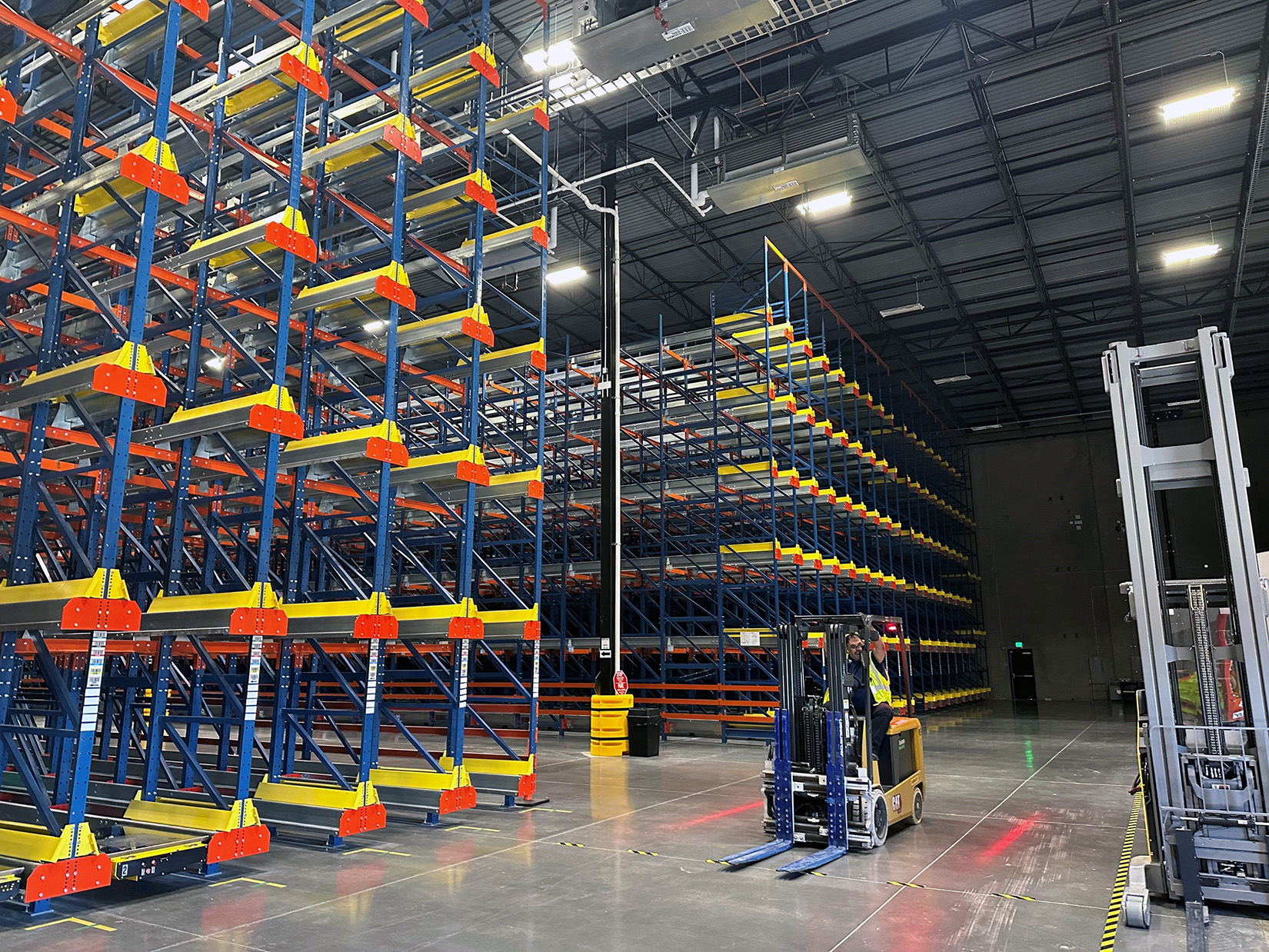

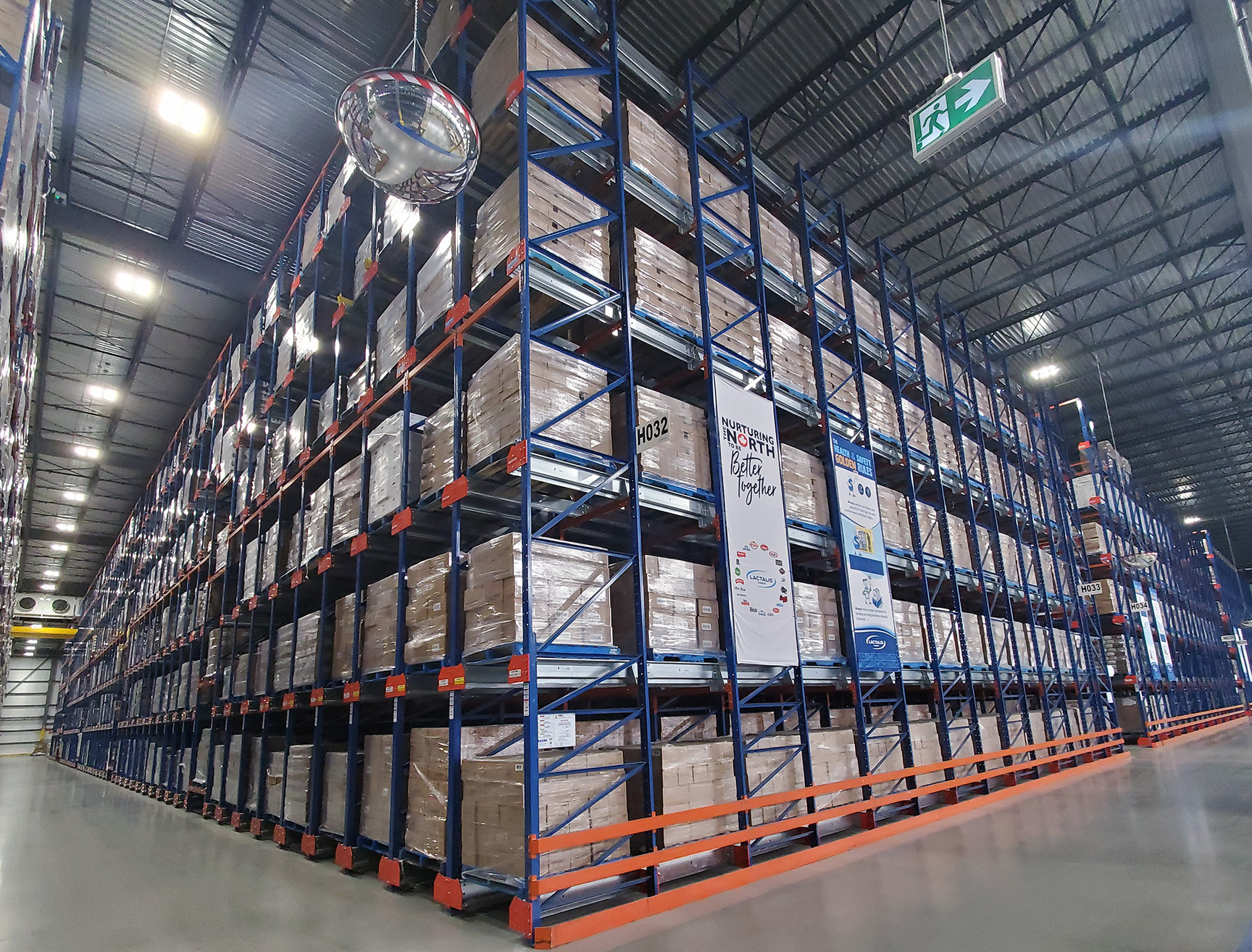

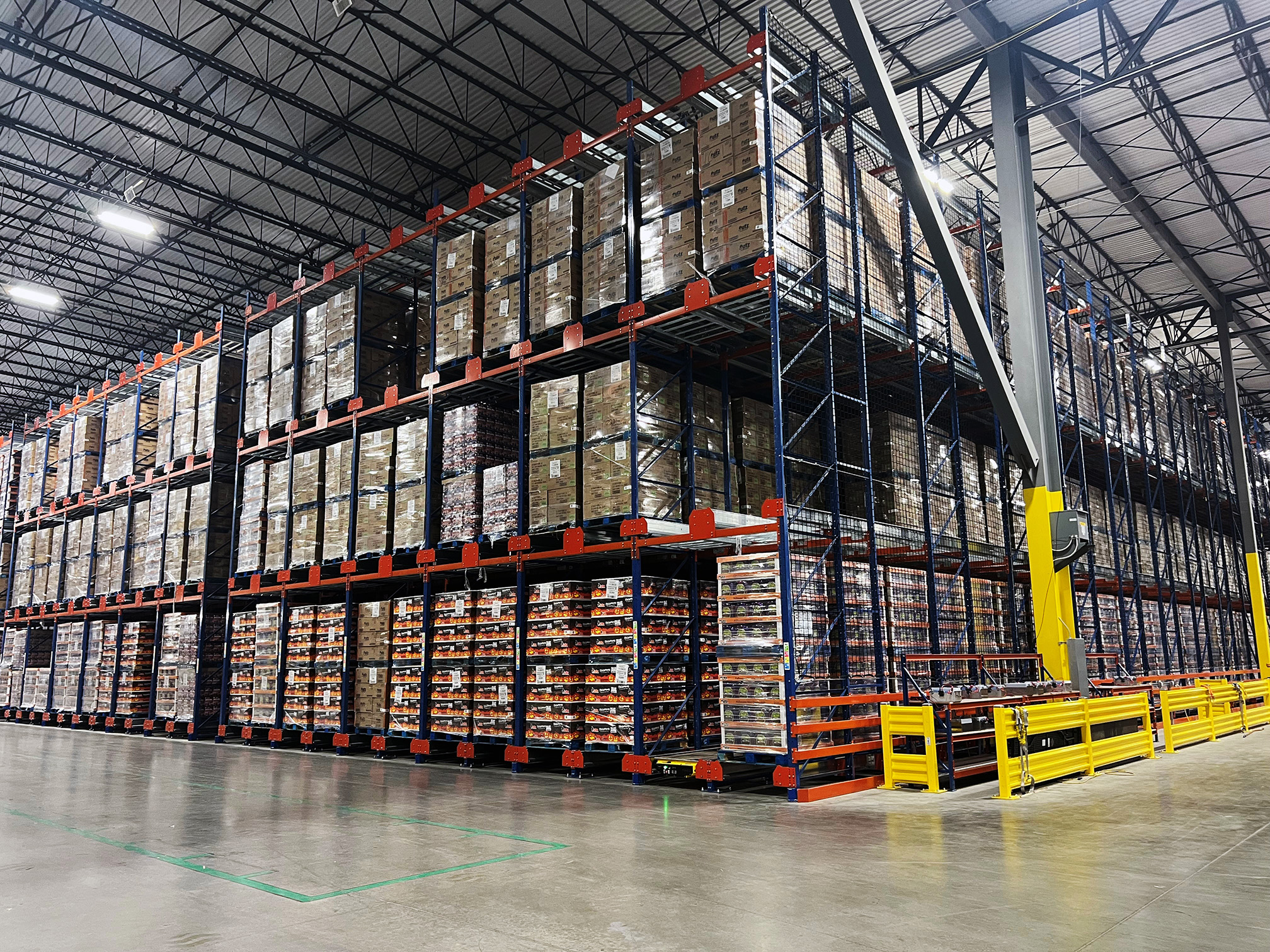

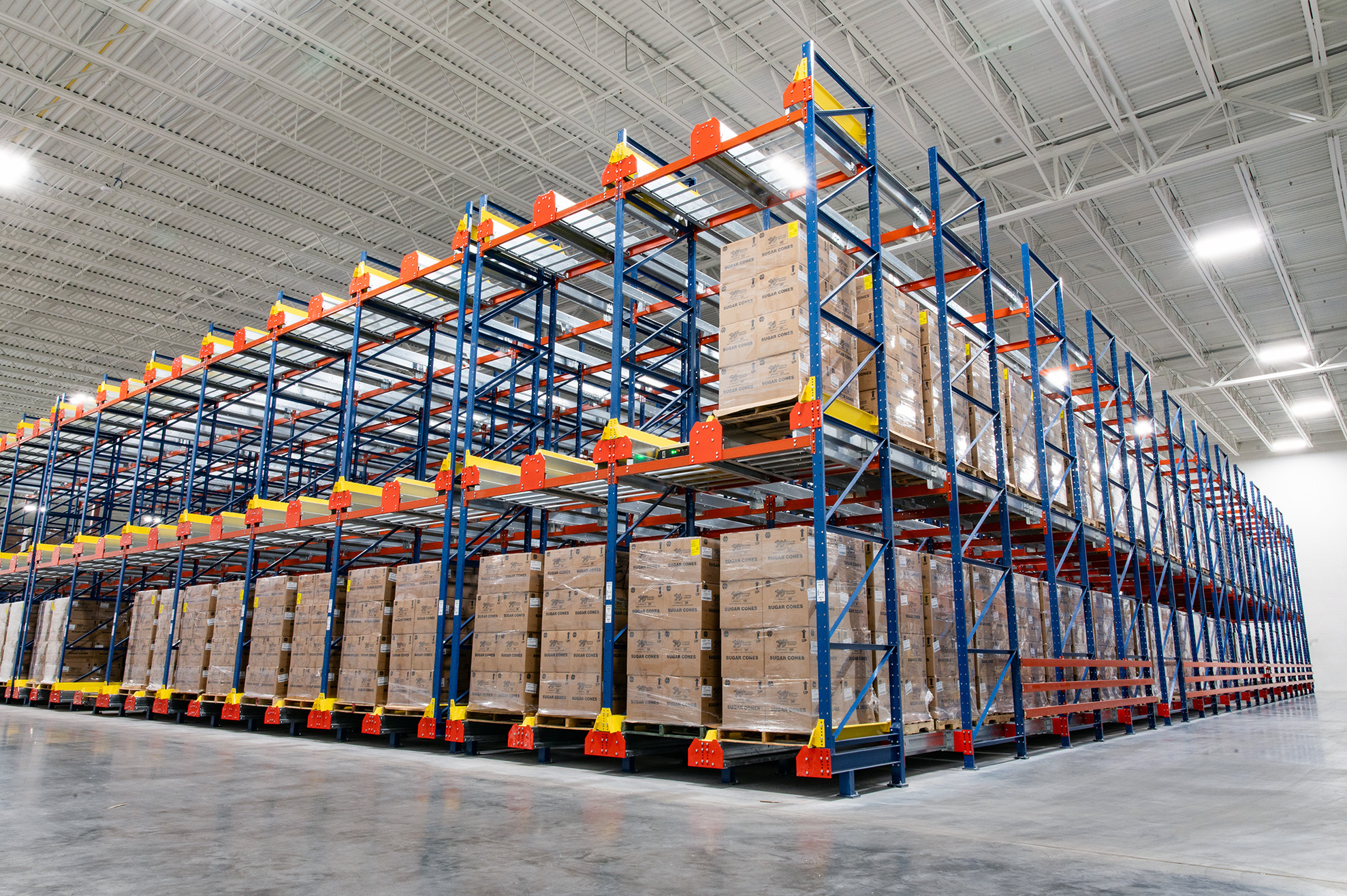

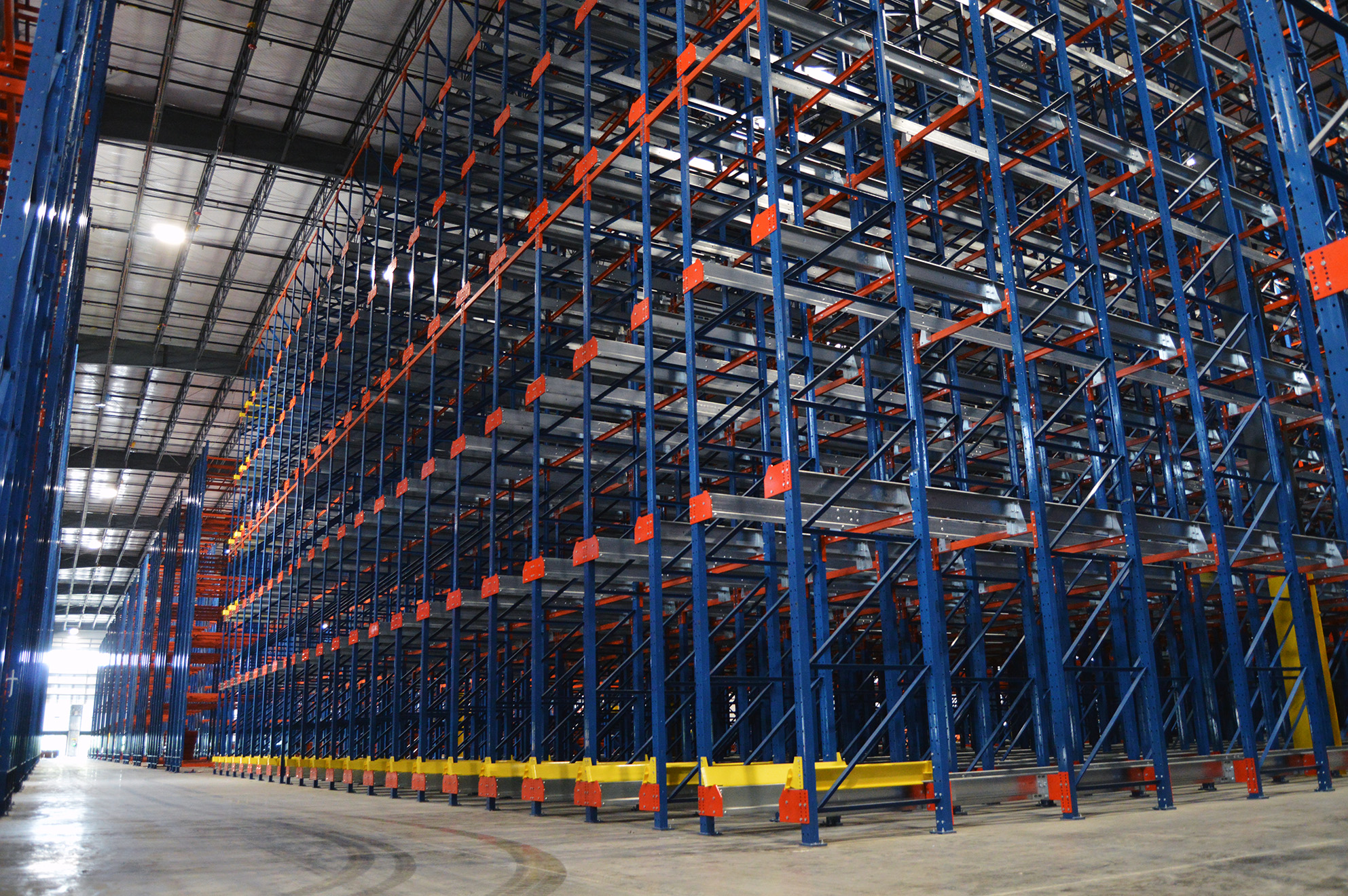

High Density Pallet Rack Storage
When it comes to choosing the best high density Storage Solution for your business, there are a number of critical factors to consider – cost, space availability, throughput and SKU (Stock Keeping Units) counts all play an important role in selecting the proper storage solution for your operation. Utilizing the latest technology in compact, high density storage, Frazier’s semi-automated MOLE IQ racking solutions can Increase Productivity, Throughput and Pallet Positions by up to 30% in a warehouse application.
- Maximizes density over 6-high and 50 pallet positions deep
- Increases Productivity, Throughput and Pallet Positions by up to 30%
- Allows for a truck to be loaded/unloaded in less than 30 minutes
- Ideal for both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) applications
- Optimizes labor efficiency
- Enhances accuracy of inventory control
Semi-Automated Shuttle

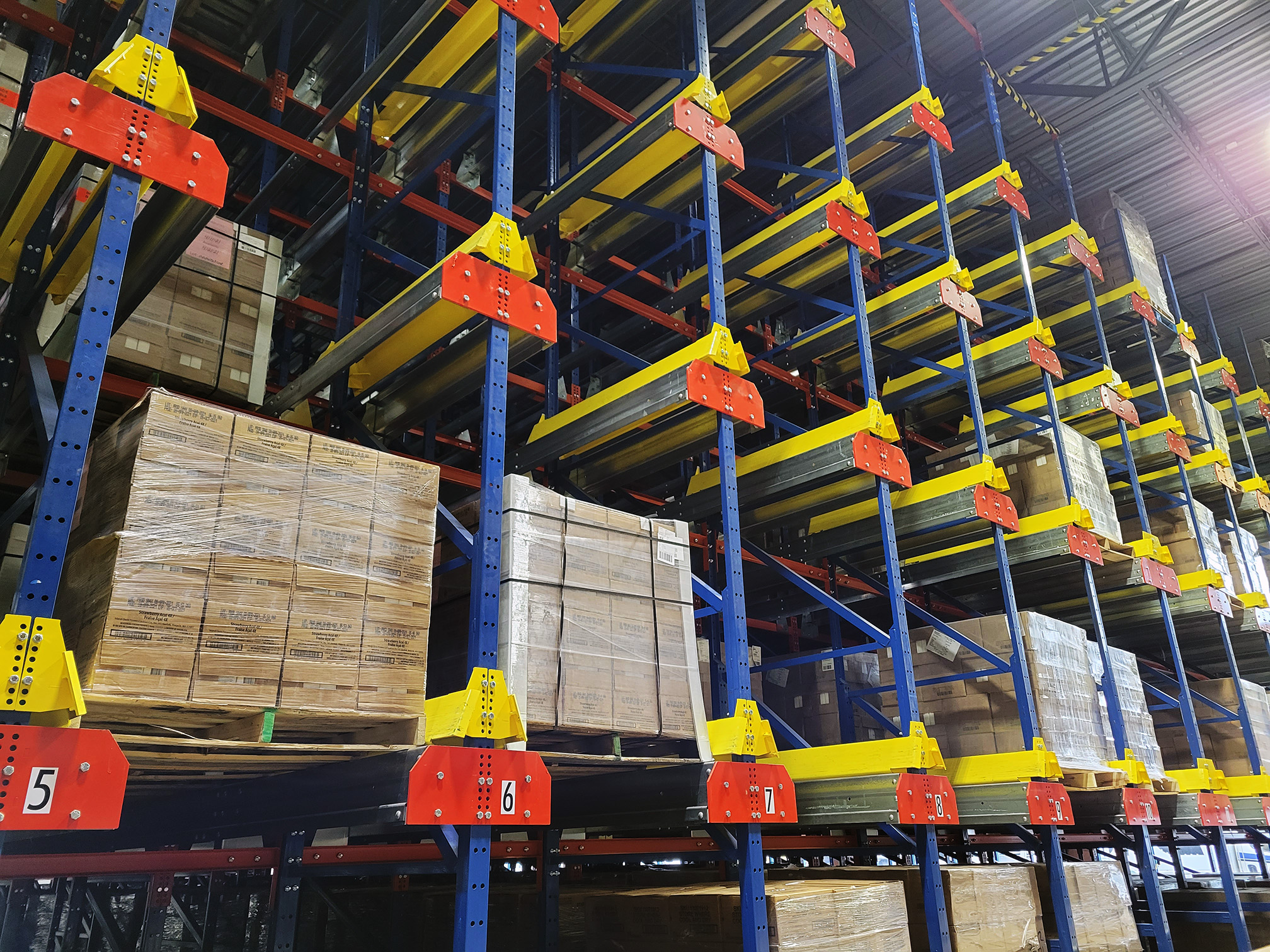

MOLE IQ runs underneath the pallet loads on rails, delivering and extracting pallets within a deep lane rack system. Working in either FIFO or LIFO applications, MOLE IQ significantly improves throughput by indexing loads directly to the first pallet position at the aisle face. Using a RF controller or Wi-Fi compatible device, the operator can instruct the electro-mechanical platform to lift, lower, or shuttle pallets to the desired position; or program the system to run various predetermined functions. 4 wheel drive and an optimal battery life for cold storage make MOLE IQ adaptable to a variety of applications.
A key feature of MOLE IQ is four heavy duty ball bearings on each corner of the platform working with the screw-drive lift system to raise the deck lid up. The deck lid as a whole picks up the load and as a result, lift performance is not dependent on the strength of the pallet. This lift system also transfers the weight of the load to the wheels of the unit; consequently, the body of the unit des not carry the weight or assume the wear and tear associated with such an action.
- Single and double wide options available
- High performance travel speed
- AC driven technology
- Pallet count system
- Pallet shuffle function
- Full two-way communication between Pallet Mole® and controller device
- 4 wheel drive
- U.L. Certified
- Built-In positioning control
- Electro mechanical, flat deck lifting system
- Patented Magnetic Latching
- Dual spacing system
- Battery low alarm
- Optional No Bottom Beam design for increased sanitation
Developed as Frazier’s response to strict updated fire code requirements, the Pallet Spacing System & Method Patent allows is a key value add across the Pallet Mole rack solution.
It allows users to be code compliant by managing a 6″ spacing between pallets sorted in the rack system. The 6″ spacing is maintained in both the front-to-back direction as well as in vertical alignment. Watch to learn more:
