Pallet Rack Accessory Overview
Row End Protection
Structural steel channels used at the end of each aisle serve as a guard preventing frame damage.
Rub-Rail
Heavy horizontal impact channel used at floor level to protect upright or frame from vertical or pallet damage.
Label Beam®
Uses 1/8″ recessed web to prevent bar code label and pallet support bolt damage.
Boxed Column
Two structural steel channels welded back-to-back to increased abuse resistance.
Bull Nose Protector
4″ high aisle column protectors that protect the front column of the racking from damage by deflecting impact from pallets or fork trucks.
Protect Your Rack. Protect Your Investment.
Choosing structural steel pallet racking is an important step toward improving warehouse safety and increasing resistance to rack damage and abuse.
But the right rack design can go even further. From Bull Nose Rack Protectors and Rub-Rails to other protective accessories, there are a variety of solutions that can be incorporated into your pallet racking system to provide added protection, durability, and long-term value.
Continue reading to explore the different pallet rack accessories available and discover how they can help protect your investment.
Featured Solutions

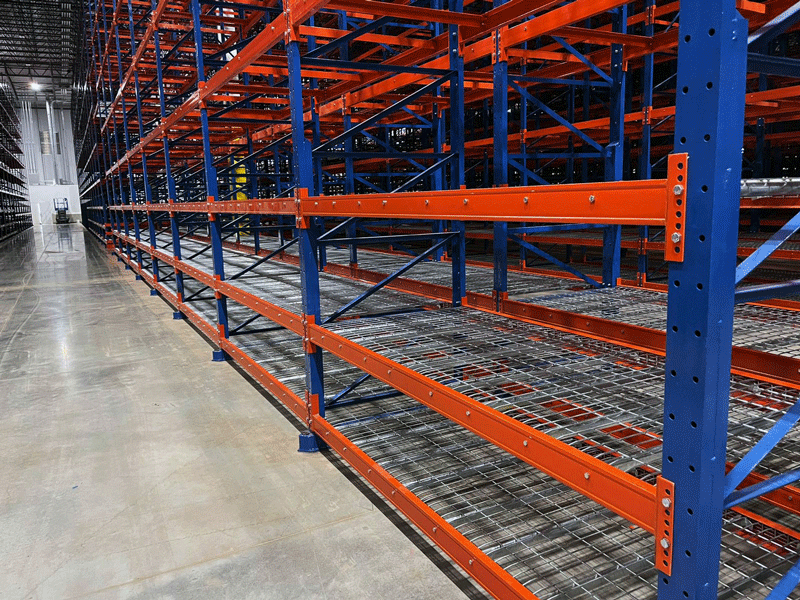

Wire Screen
Frazier’s Wire Screen utilizes an internal flare “tuck-in” style, as opposed to the industry’s current external flare style seen on wire mesh decking. It was conceived to create a solution for user issues – warping wire beds and jagged pieces of wire – commonly associated with the industry’s current design. The Wire Screen immediately eliminates these risks and provides greater safety across the warehouse operation.

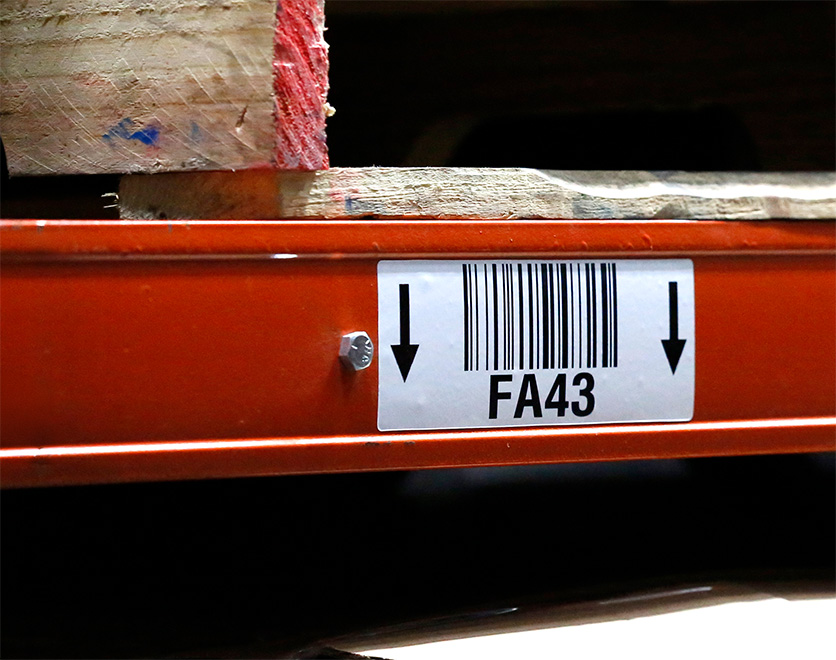

Label Beam®
Frazier’s Label Beam® uses 1/8″ recessed web to prevent bar code label and pallet support bolt damage. It saves downtime and label replacement costs. The beam itself does not lose any capacity due to the indentation for the recessed web.

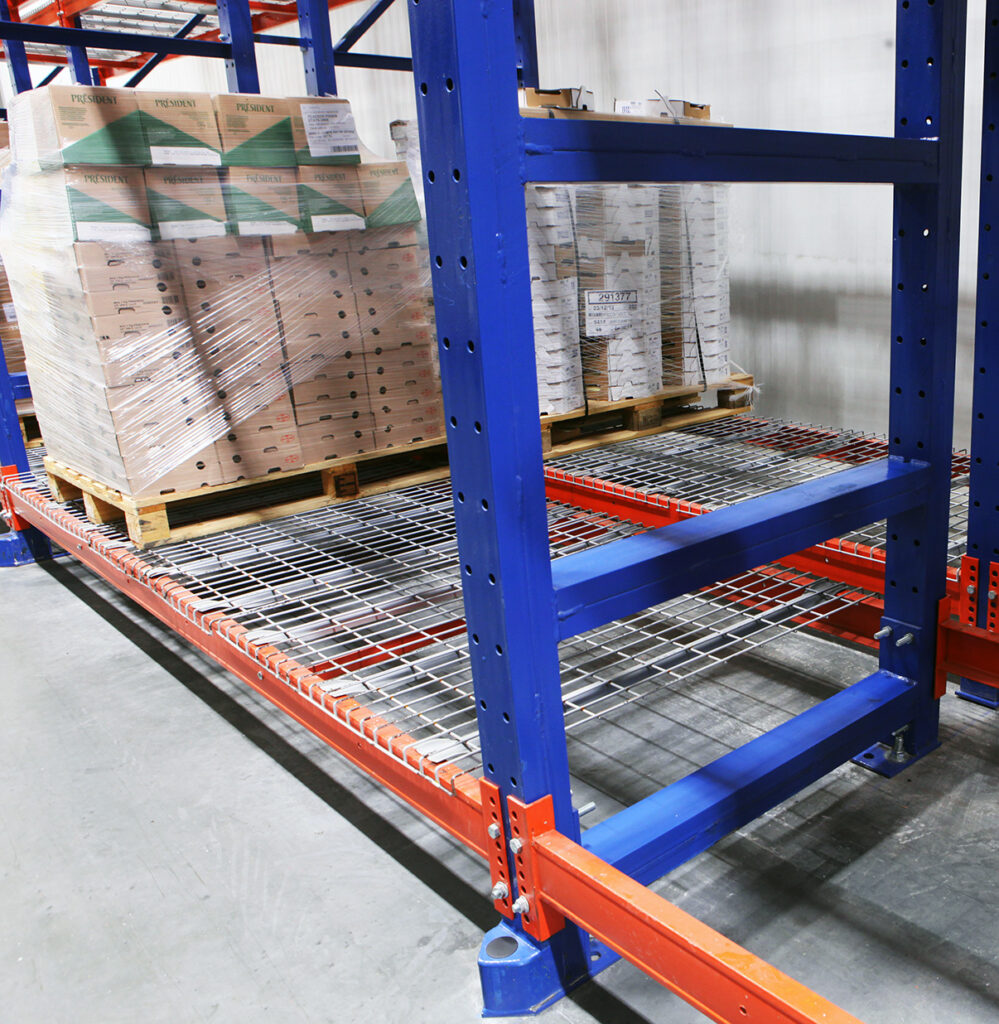

Moment Frame®
Strong bracing is critical in high-impact areas of a rack frame, particularly within the first 5–6 feet above the floor. For applications where increased impact resistance is required near the base of the frame, Frazier developed the Moment Frame®. The Moment Frame® replaces the standard floor-level horizontal with two channels welded flange-to-flange, creating a boxed configuration that provides enhanced structural strength and increased resistance to impact.
Accessories & Enhancements

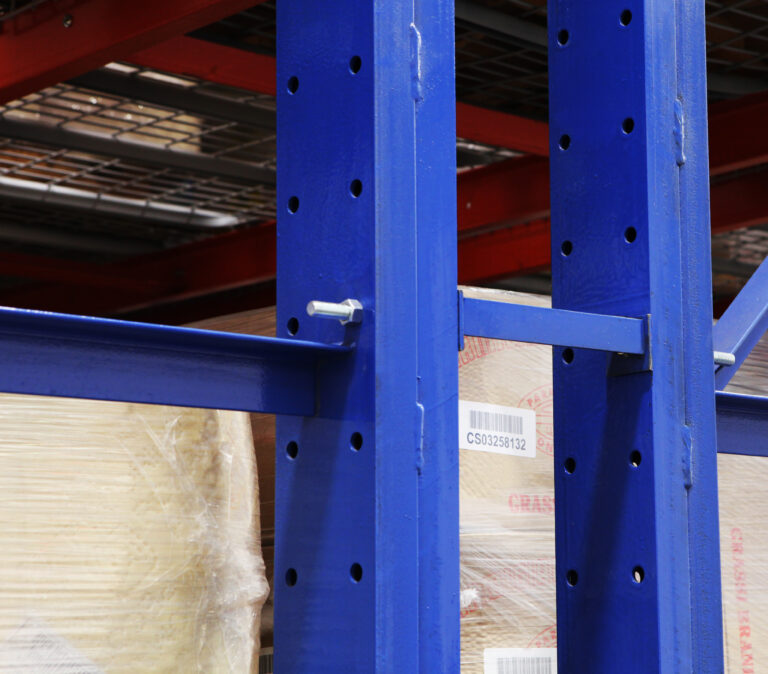

Back-to-Back Ties
Provides immediate installation benefits by minimizing the potential for uplift. Additionally, back-to-back ties will offer added stability of the rack especially within taller distribution center.

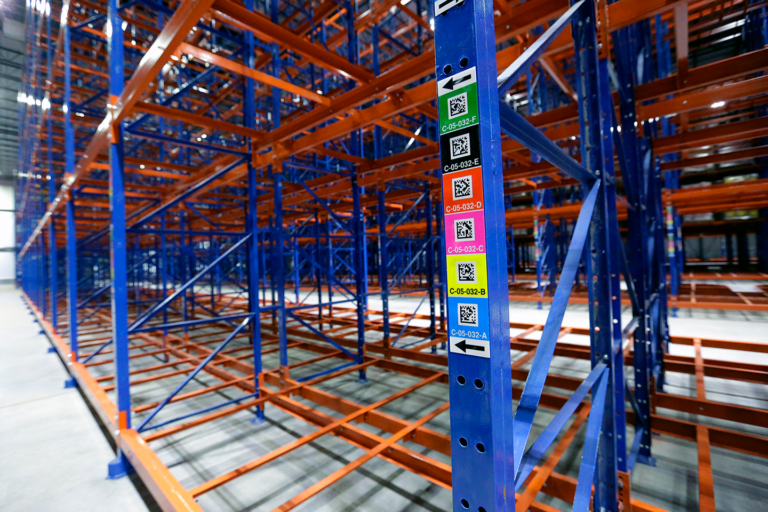

Boxed Columns
Increased abuse resistance automatically provided by boxing the column uprights; two structural steel channels are welded back-to-back. This “boxed” upright is also valuable when customers are looking to increase the overall load capacity within their racking solution along with maximizing their torsion resistance.

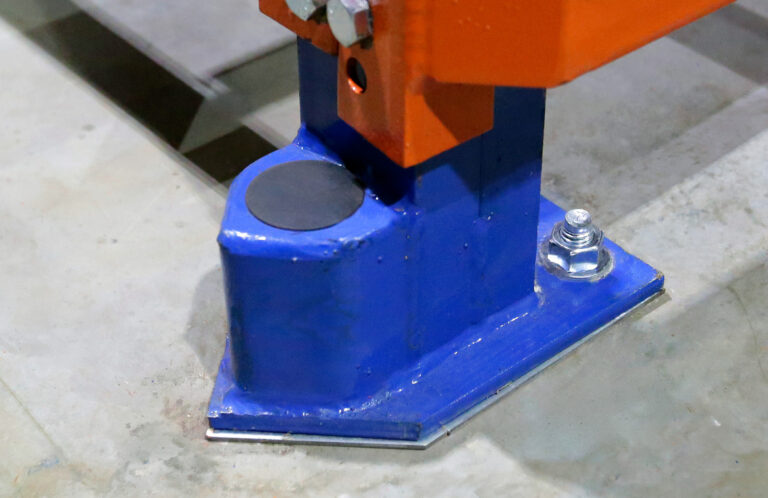

Bull Nose Protectors
4″ high aisle column protectors. Bull Noses protect the front column of the racking from damage by deflecting impact from pallets or fork trucks.

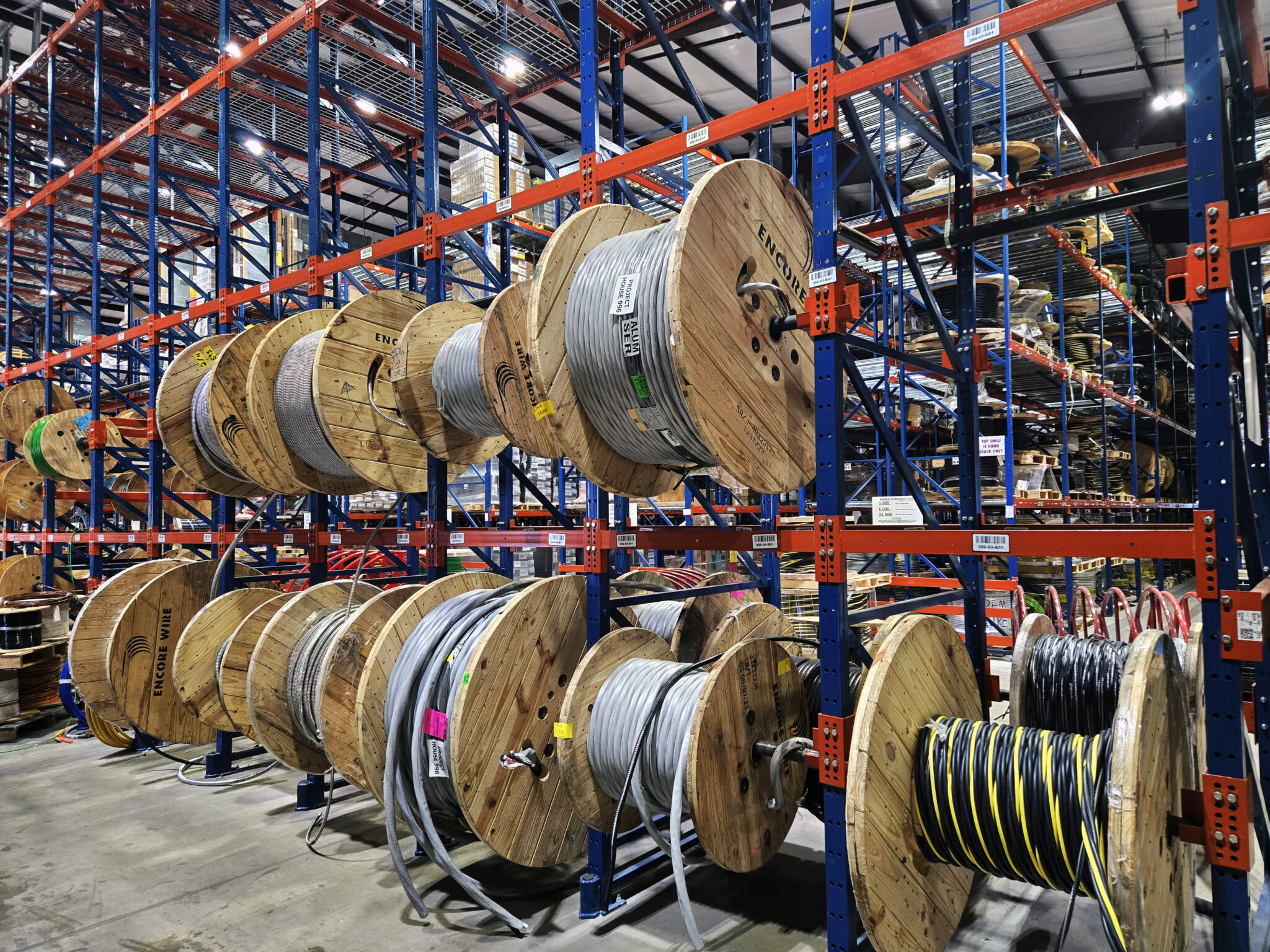

Reel Support Brackets
Easily converts standard rack to reel-on coil storage facility. Sold in pairs only, axles sold separately.

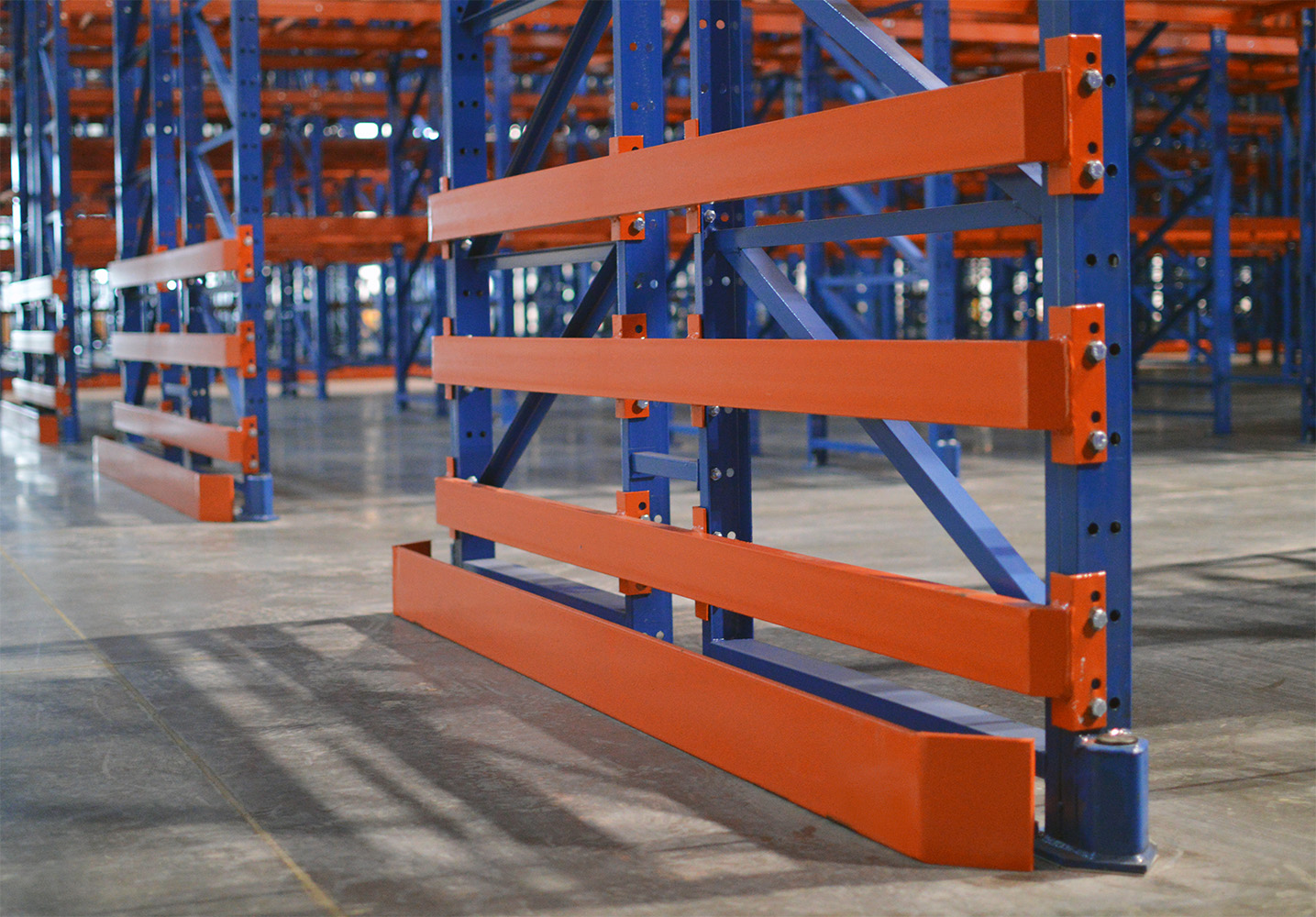

Row End Protection
Structural steel channels used at the end of each aisle serve as a guard preventing frame damage.

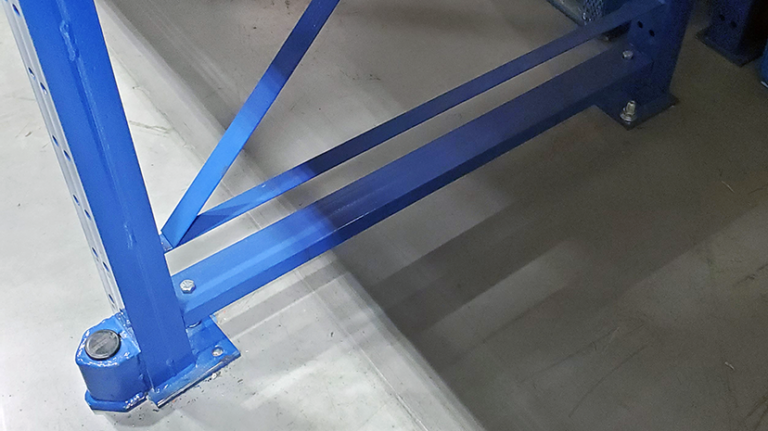

Rub-Rails
Heavy horizontal impact channel used at floor level to protect upright or frame from vertical or pallet damage.

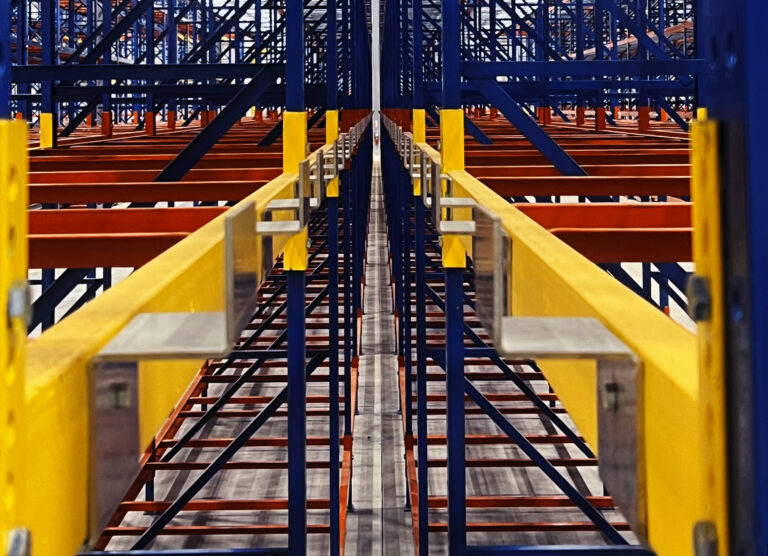

Z-Stops
Z-stops are formed plates mounted directly to the rear shelf beam.
Z-stops allow for 2” or 3” of pallet overhang at the rear of the shelf. They are 3” or 4” high to allow for normal lift off, while not damaging the product (typical pallet height is 5 1/2”).
